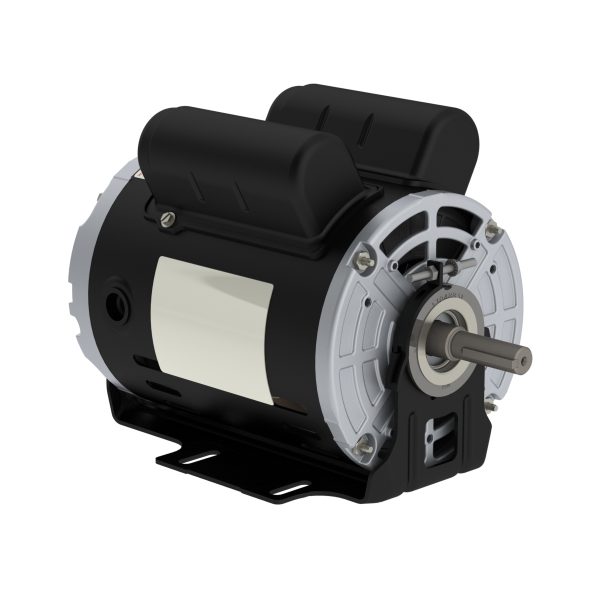

.5018OT1BRBOW56-S – WEG AC Motor

Rolled Steel Fan and Exhaust 1.5 HP 2P 56 1Ph 115/208-230 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: .5018OT1BRBOW56-S

SKU: .5018OT1BRBOW56-S Category: WEG Electric Corp - AC Motors - Previous Generation

Description
Additional information

Description

.5018OT1BRBOW56-S – WEG AC Motor. The W01 (Rolled Steel) motor is the perfect option for applications that require robustness, low weight and high performance in a single product. It has good thermal performance, easy installation and maintenance and it is able to operate on an elastic base. With steel plate frame and aluminum flange, these versatile single-phase motors provide torque and durability for several applications.

Downloads: .5018OT1BRBOW56-S

Additional information

Weight	25.8 lbs
Manufacturer	WEG
Application	General Purpose
Frame Material	Rolled Steel
Frame	W56
Degree of Protection
Horsepower	0.5 HP
Kilowatts	0.37 kW
Phase	1 Ph
Rated Voltage	115/208-230 V
Rated Frequency	60 Hz
Rated Current	4.86/3.04-2.43 A
Rated Speed	1730 RPM
Synchronous speed	1800 RPM
Pole	4:00 PM
Service Factor	1.25 (1.00 @ 208V) SF
Enclosure	IC01 – ODP
Mounting	Foot-mounted
Flange	Without
Rated Torque	1.52 ft.lb
Terminal Box	Without Terminal Box
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	50.0 dB(A)
Misc	Replaced by : .5018OT1BRBOW56-S – 13901566
