Description
Downloads: .5018OS1BC56CFL
Motor with steel plate frame, for general use, developed to meet different applications with maximum performance and economy.

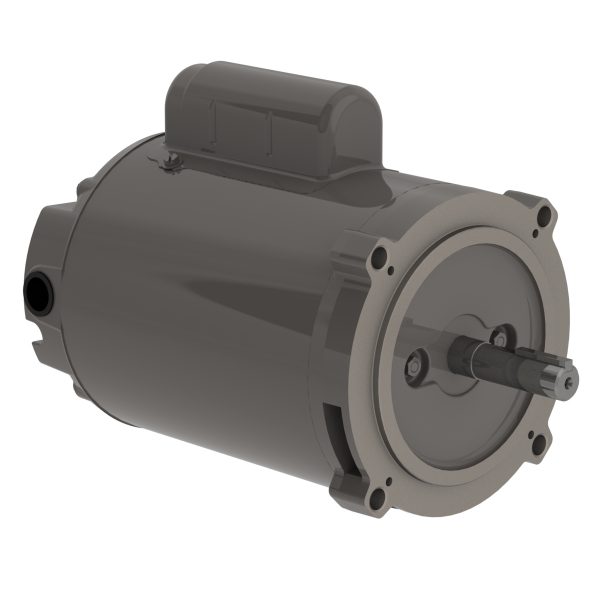

.5018OS1BC56CFL WEG AC Motor
.5018OS1BC56CFL – Motor Permanent Capacitor 5 HP 4P E56 1Ph 208-240//220-230 V 60//50 Hz IC01 – ODP – Foot-mounted
Downloads: .5018OS1BC56CFL
Additional information
| Weight | 21.1 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Rolled Steel |
| Frame | C56C |
| Degree of Protection | IP21 |
| Horsepower | 0.5 HP |
| Kilowatts | 0.37 kW |
| Phase | 1 Ph |
| Rated Voltage | 115/208-230 V |
| Rated Frequency | 60 Hz |
| Rated Current | 8.50/4.10-4.25 A |
| Rated Speed | 1730 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.25 (1.00 @ 208V) SF |
| Enclosure | IC01 – ODP |
| Mounting | Footless |
| Flange | FC 149 |
| Rated Torque | 1.52 ft.lb |
| Terminal Box | Without Terminal Box |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 50.0 dB(A) |
| Misc | Replaced by : .5018OT1BW56CFL-S – 13039362 |
