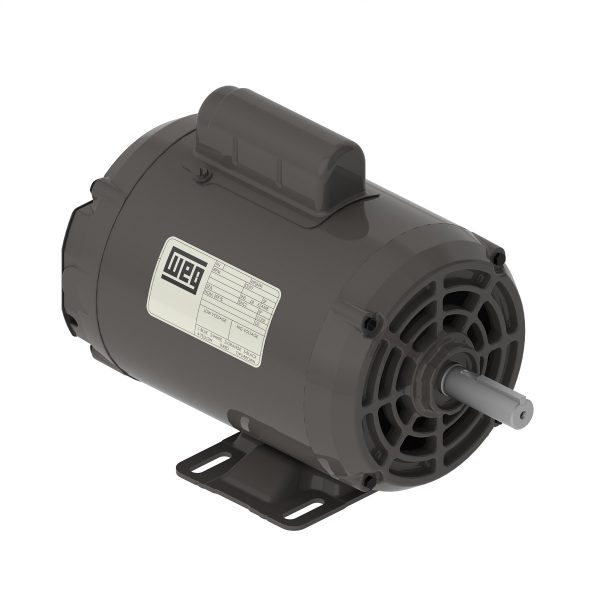

.1618OS1BB48 WEG AC Motor
.1618OS1BB48 – Motor 7.5 HP 4P 213/5T 1Ph 230/460 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: .1618OS1BB48
Additional information
| Weight | 16.3 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Rolled Steel |
| Frame | B48 |
| Degree of Protection | IP21 |
| Horsepower | 0.167 HP |
| Kilowatts | 0.12 kW |
| Phase | 1 Ph |
| Rated Voltage | 115/208-230 V |
| Rated Frequency | 60 Hz |
| Rated Current | 3.70/1.75-1.85 A |
| Rated Speed | 1740 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.35 (1.00 @ 208V) SF |
| Enclosure | IC01 – ODP |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 0.483 ft.lb |
| Terminal Box | Without Terminal Box |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | |
| Misc | Replaced by : .1618OS1B48-S – 14360314 |
