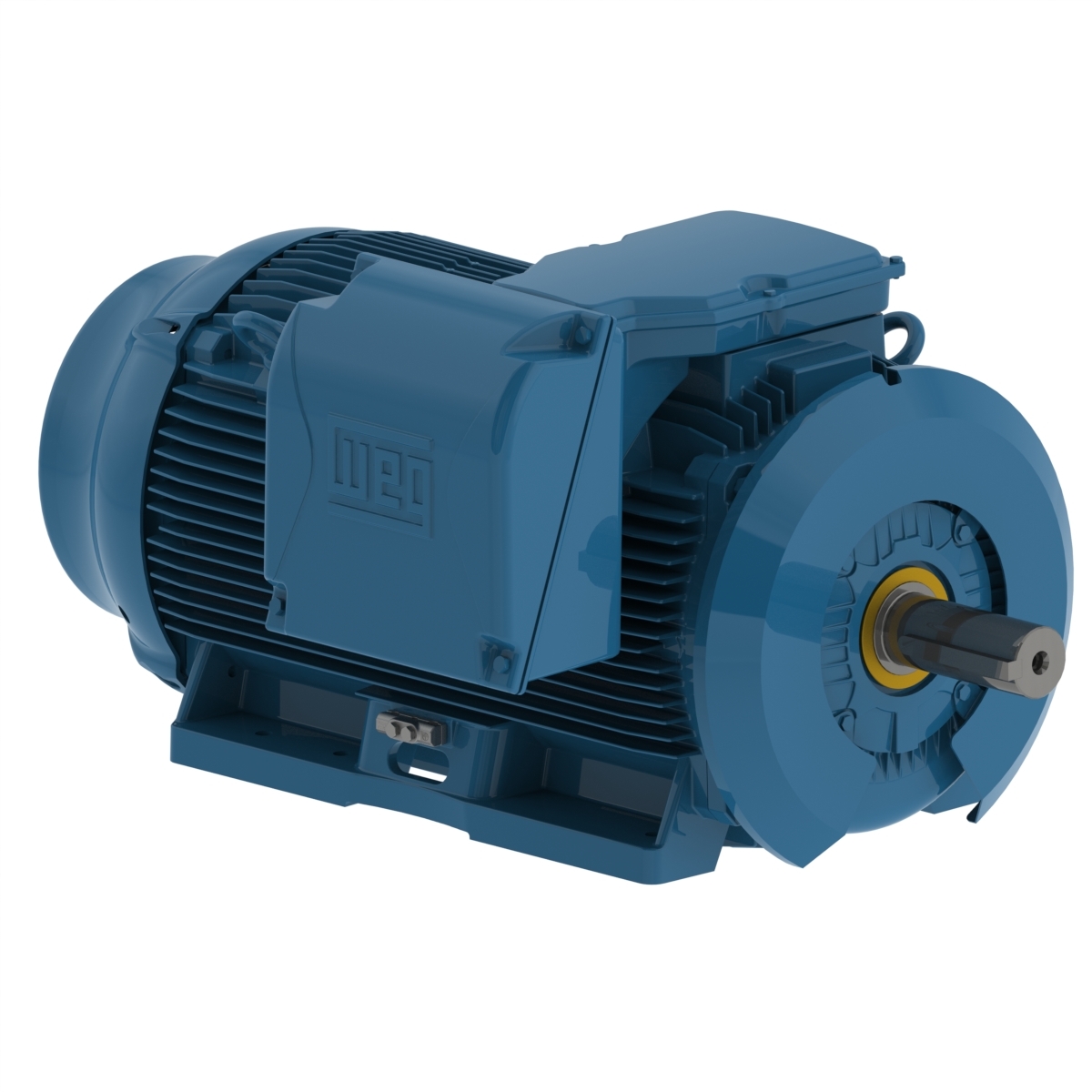

35018ST3QIE449T-W22 WEG AC Motor
35018ST3QIE449T-W22 – WEG AC Motor
W22 IEEE 841 NEMA Premium Efficiency 350 HP 4P L447/9T 3Ph 460 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 35018ST3QIE449T-W22
Additional information
| Weight | 3198 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Severe Duty |
| Frame Material | Cast Iron |
| Frame | L447/9T |
| Degree of Protection | IP56 |
| Horsepower | 350 HP |
| Kilowatts | 260 kW |
| Phase | 3 Ph |
| Rated Voltage | 460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 394 A |
| Rated Speed | 1787 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 1030 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 77.0 dB(A) |
| Misc |
