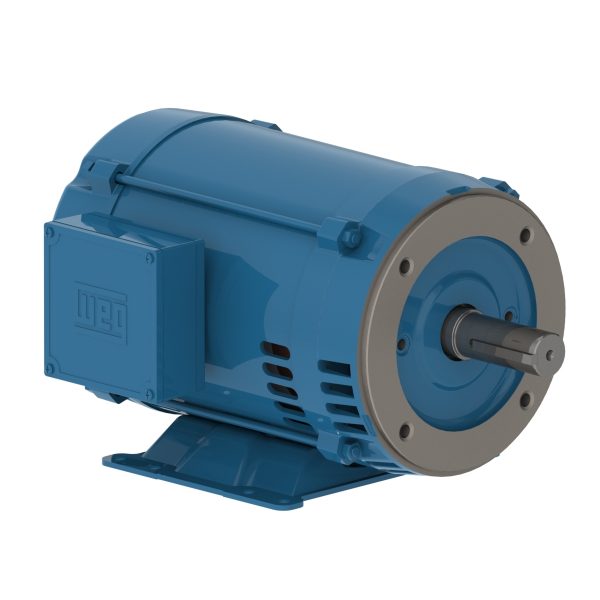

11256633 WEG AC Motor
11256633 – WEG AC Motor
General NEMA Premium Efficiency 5 HP 4P 184TC 3Ph 200/400 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 11256633
Additional information
| Weight | 61.5 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Rolled Steel |
| Frame | 182TC |
| Degree of Protection | IP21 |
| Horsepower | 5 HP |
| Kilowatts | 3.7 kW |
| Phase | 3 Ph |
| Rated Voltage | 230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 12.3/6.17 A |
| Rated Speed | 3490 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC01 – ODP |
| Mounting | Foot-mounted |
| Flange | C |
| Rated Torque | 7.52 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 64.0 dB(A) |
| Misc |
