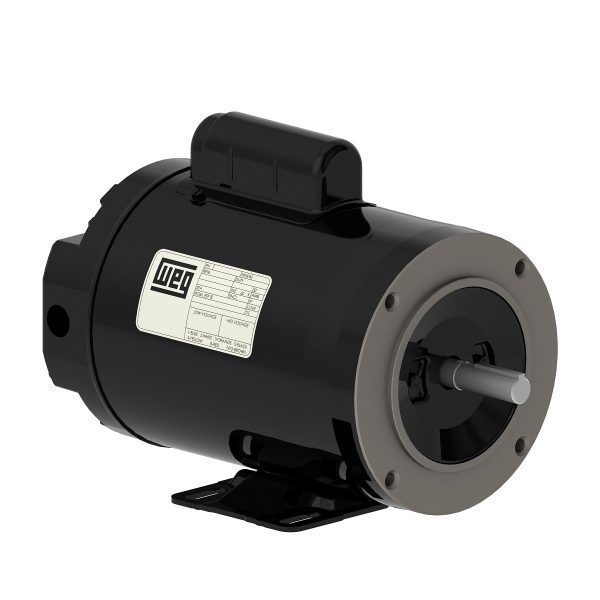

10857764 WEG AC Motor
10857764 – WEG AC Motor
Motor Split Phase 0.25 HP 4P B48 1Ph 115/208-230 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 10857764
Additional information
| Weight | 33.5 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Rolled Steel |
| Frame | D56C |
| Degree of Protection | IP21 |
| Horsepower | 1 HP |
| Kilowatts | 0.75 kW |
| Phase | 1 Ph |
| Rated Voltage | 115/208-230 V |
| Rated Frequency | 60 Hz |
| Rated Current | 14.0/6.80-7.00 A |
| Rated Speed | 1740 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.15 (1.00 @ 208V) SF |
| Enclosure | IC01 – ODP |
| Mounting | Foot-mounted |
| Flange | FC 149 |
| Rated Torque | 3.02 ft.lb |
| Terminal Box | Without Terminal Box |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 50.0 dB(A) |
| Misc |
