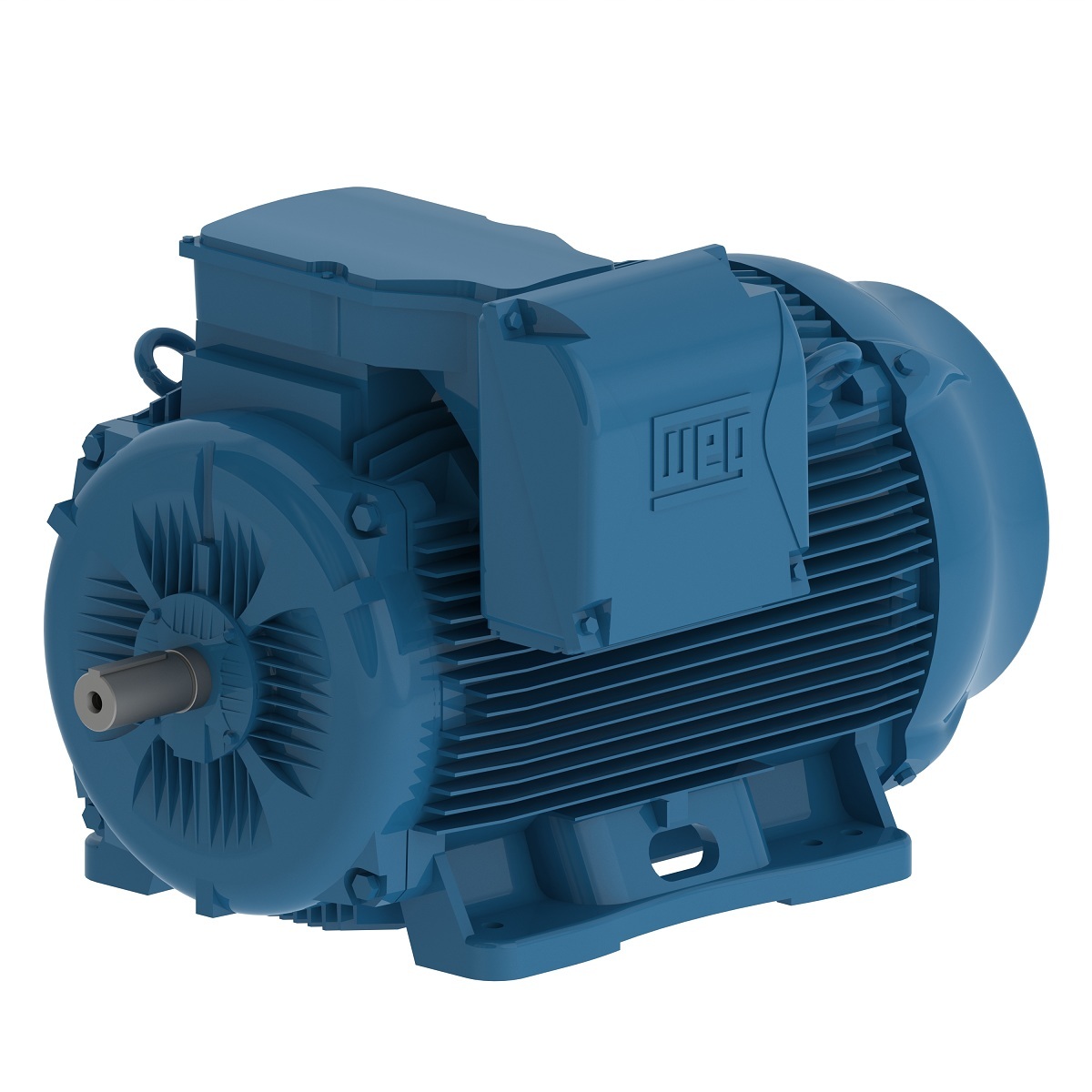

07509ET3Y315S/M-W22 WEG AC Motor
07509ET3Y315S/M-W22 – WEG AC Motor
W22 Tru-Metric IE3 100 HP 8P 315S/M 3Ph 460//380-415 V 60 Hz IC411 – TEFC – B3L(E)
Downloads: 07509ET3Y315S/M-W22
Additional information
| Weight | 2518 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose W22 Tru-Metric |
| Frame Material | Cast Iron |
| Frame | 315S/M |
| Degree of Protection | IP55 |
| Horsepower | 100 HP |
| Kilowatts | 75 kW |
| Phase | 3 Ph |
| Rated Voltage | 460//380-415 V |
| Rated Frequency | 60 Hz |
| Rated Current | 150 A |
| Rated Speed | 740 RPM |
| Synchronous speed | 900 RPM |
| Pole | 8:00 PM |
| Service Factor | |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 710 ft.lb |
| Terminal Box | Right position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 62.0 dB(A) |
