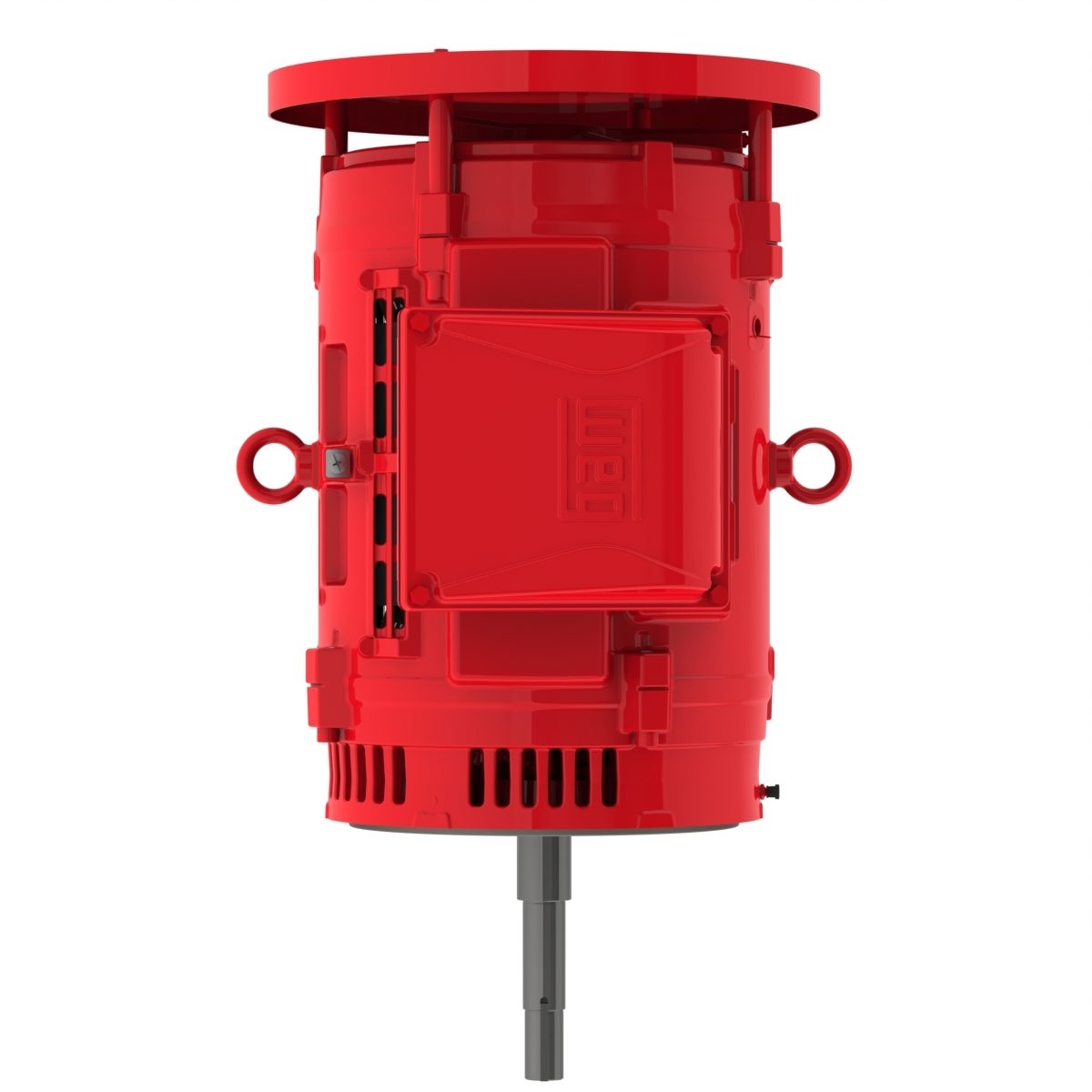

06036OP3VFP326JPV-W4 WEG AC Motor
06036OP3VFP326JPV-W4 – WEG AC Motor
W40 JP Pump High Efficiency 60 HP 2P 324/6JP 3Ph 200/400 V 60 Hz IC01 – ODP – Footless
Downloads: 06036OP3VFP326JPV-W4
Additional information
| Weight | 479 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Close Coupled JM/JP |
| Frame Material | Cast Iron |
| Frame | 324/6JP |
| Degree of Protection | IP23 |
| Horsepower | 60 HP |
| Kilowatts | 45 kW |
| Phase | 3 Ph |
| Rated Voltage | 200/400 V |
| Rated Frequency | 60 Hz |
| Rated Current | 162/81.2 A |
| Rated Speed | 3555 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC01 – ODP |
| Mounting | W-6 |
| Flange | C |
| Rated Torque | 88.6 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | |
| Misc |
