Cast iron frame IP23 motor complying with levels according to NEMA MG-1.

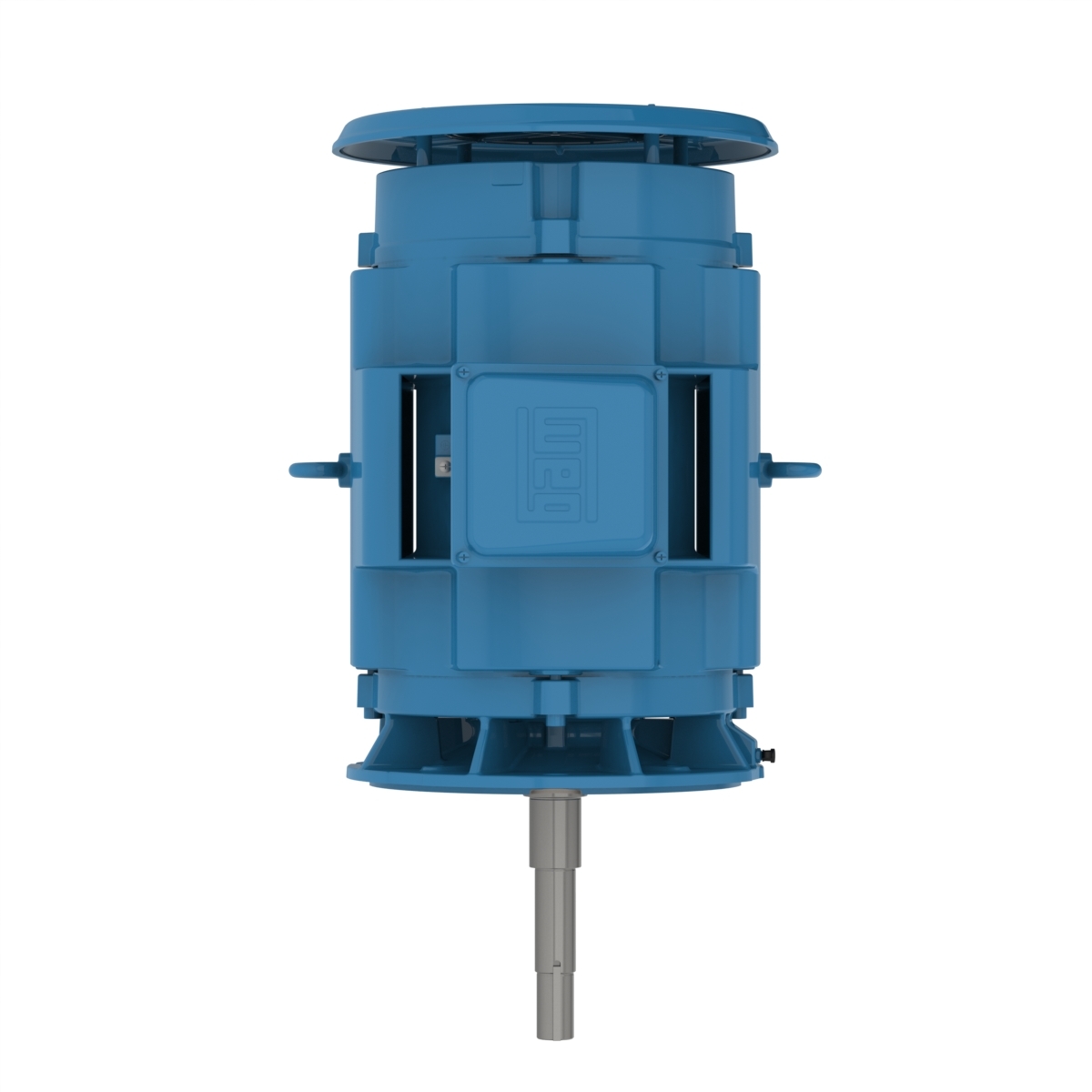

02036OT3H254JPV WEG AC Motor
02036OT3H254JPV – Close Coupled Pump NEMA Premium Efficiency 20 HP 2P 254JP 3Ph 575 V 60 Hz IC01 – ODP – Footless
Downloads: 02036OT3H254JPV
Additional information
| Weight | 202 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Close Coupled JM/JP |
| Frame Material | Cast Iron |
| Frame | 254JP |
| Degree of Protection | IP23 |
| Horsepower | 20 HP |
| Kilowatts | 15 kW |
| Phase | 3 Ph |
| Rated Voltage | 575 V |
| Rated Frequency | 60 Hz |
| Rated Current | 19.7 A |
| Rated Speed | 3520 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC01 – ODP |
| Mounting | W-6 |
| Flange | C |
| Rated Torque | 29.8 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 66 dB(A) |
| Misc | Replaced by : 02036OT3H254JPV-S – 13482986 |
