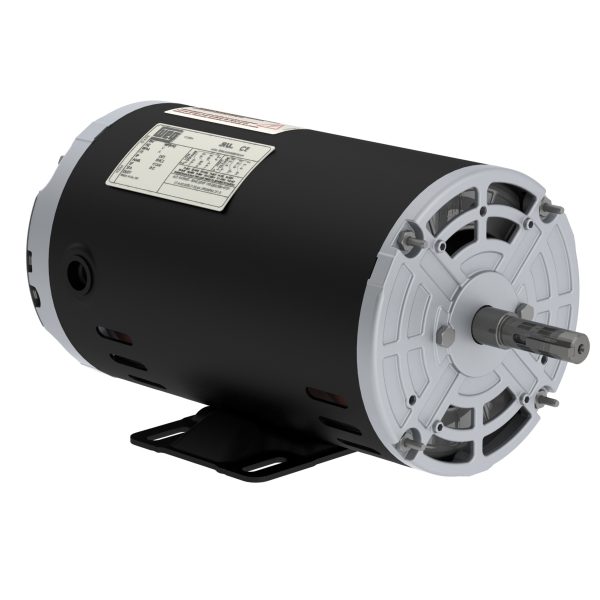

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for the severest applications.
| Weight | 22.9 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Rolled Steel |
| Frame | 56 |
| Degree of Protection | |
| Horsepower | 0.75 HP |
| Kilowatts | 0.55 kW |
| Phase | 3 Ph |
| Rated Voltage | 575 V |
| Rated Frequency | 60 Hz |
| Rated Current | 0.920 A |
| Rated Speed | 1760 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.25 SF |
| Enclosure | IC01 – ODP |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 2.24 ft.lb |
| Terminal Box | Without Terminal Box |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 52.0 dB(A) |
| Misc | Replaced by : .7518OT3H56-S – 13595084 |
