Description
Downloads: 00736ES1C213JP
They ensure maximum performance and robustness in a great variety of applications.

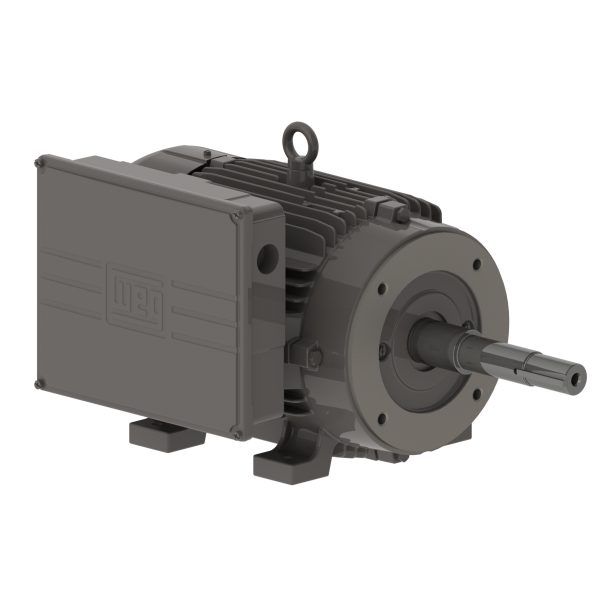

00736ES1C213JP WEG AC Motor
00736ES1C213JP – Close Coupled Pump 7.5 HP 2P 213JP 1Ph 208-230 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 00736ES1C213JP
Additional information
| Weight | 147 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Close Coupled JM/JP |
| Frame Material | Cast Iron |
| Frame | 213JP |
| Degree of Protection | IP54 |
| Horsepower | 7.5 HP |
| Kilowatts | 5.5 kW |
| Phase | 1 Ph |
| Rated Voltage | 208-230 V |
| Rated Frequency | 60 Hz |
| Rated Current | 33.4-30.3 A |
| Rated Speed | 3515 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 (1.00 @ 208V) SF |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Flange | C |
| Rated Torque | 11.2 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | |
| Misc | Replaced by : 00736ES1C213JP-W22 – 14183388 |
