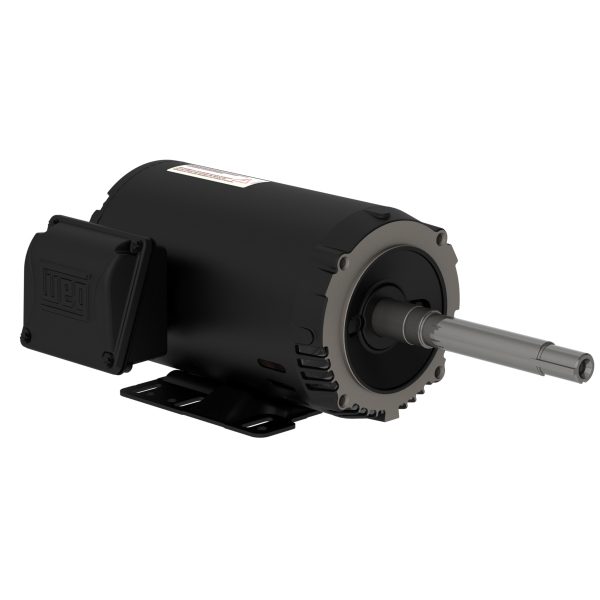

00336OP3E145JP-S WEG AC Motor
00336OP3E145JP-S – WEG AC Motor
Rolled Steel JP Pump High Efficiency 3 HP 2P 143/5JP 3Ph 230/460//190-220/380-415 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 00336OP3E145JP-S
Additional information
| Weight | 39.7 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Close Coupled JM/JP |
| Frame Material | Rolled Steel |
| Frame | 143/5JP |
| Degree of Protection | |
| Horsepower | 3 HP |
| Kilowatts | 2.2 kW |
| Phase | 3 Ph |
| Rated Voltage | 230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 7.38/3.69 A |
| Rated Speed | 3475 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 (1.00 @ 208V) SF |
| Enclosure | IC01 – ODP |
| Mounting | F-1 |
| Flange | C |
| Rated Torque | 4.53 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 62 dB(A) |
| Misc | Replaced by : 00336OT3E145JP-S – 12682713 |
