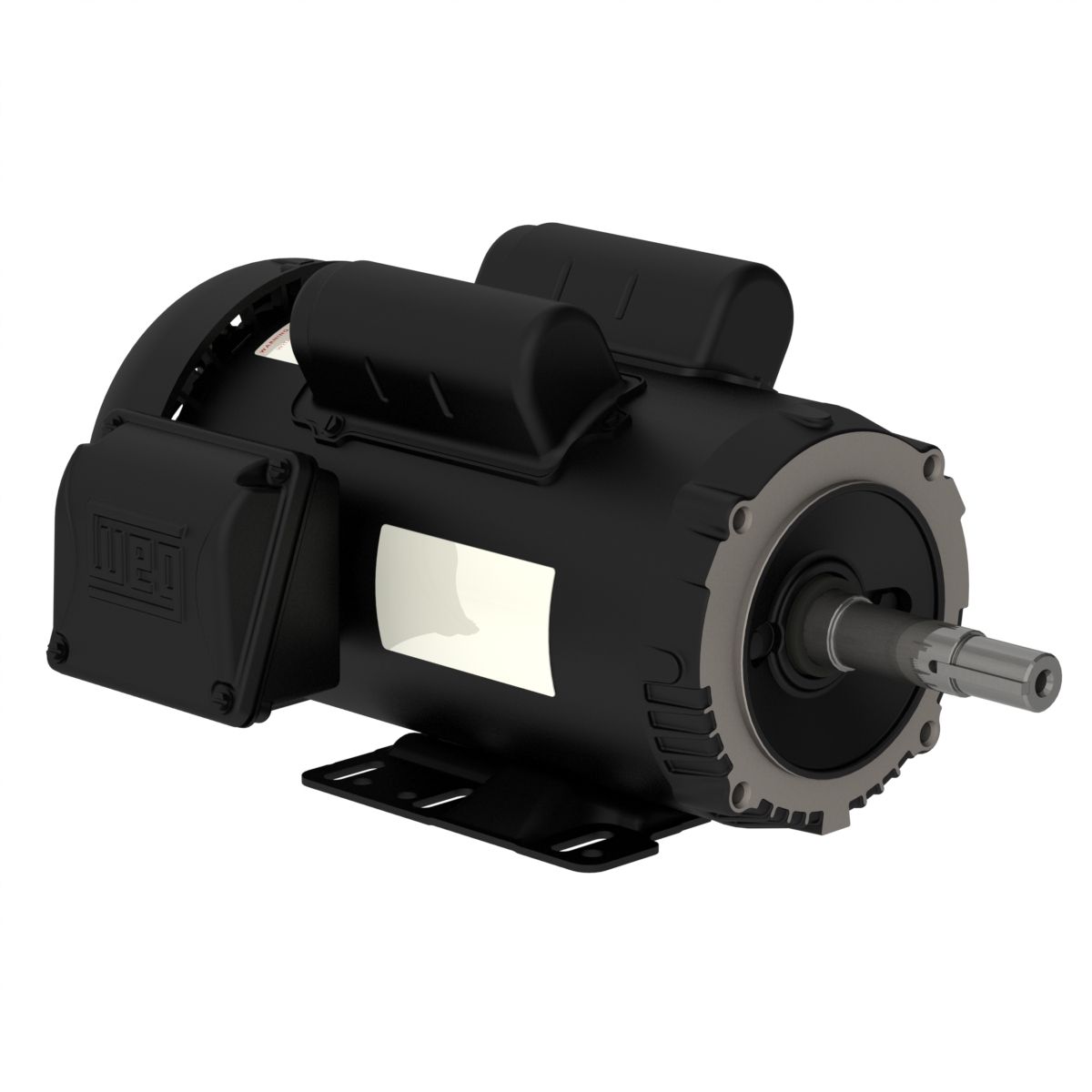

00336ES1B145JM WEG AC Motor

00336ES1B145JM – WEG AC Motor

Rolled Steel JM Pump 3 HP 2P 143/5JM 1Ph 115/208-230 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 00336ES1B145JM

Description

00336ES1B145JM – WEG AC Motor. The W01 “JM” (mechanical seal) motors were especially developed for application on pumps with direct coupling. They ensure maximum performance and robustness in a great variety of applications.

Downloads: 00336ES1B145JM

Additional information

Weight 55.3 lbs
Manufacturer

WEG

Application

Close Coupled JM/JP

Frame Material

Rolled Steel

Frame

143/5JM

Degree of Protection

IP55

Horsepower

3 HP

Kilowatts

2.2 kW

Phase

1 Ph

Rated Voltage

115/208-230 V

Rated Frequency

60 Hz

Rated Current

26.0/14.0-13.0 A

Rated Speed

3480 RPM

Synchronous speed

3600 RPM

Pole

2:00 PM

Service Factor

1.15 SF

Enclosure

IC411 – TEFC

Mounting

F-1

Flange

C

Rated Torque

4.53 ft.lb

Terminal Box

Left position

Ambient temperature

-20°C to +40°C

Altitude

1000 m.a.s.l.

Noise level

60 dB(A)

Misc

Replaced by : 00336ES1B145JM-W22 – 14184284
