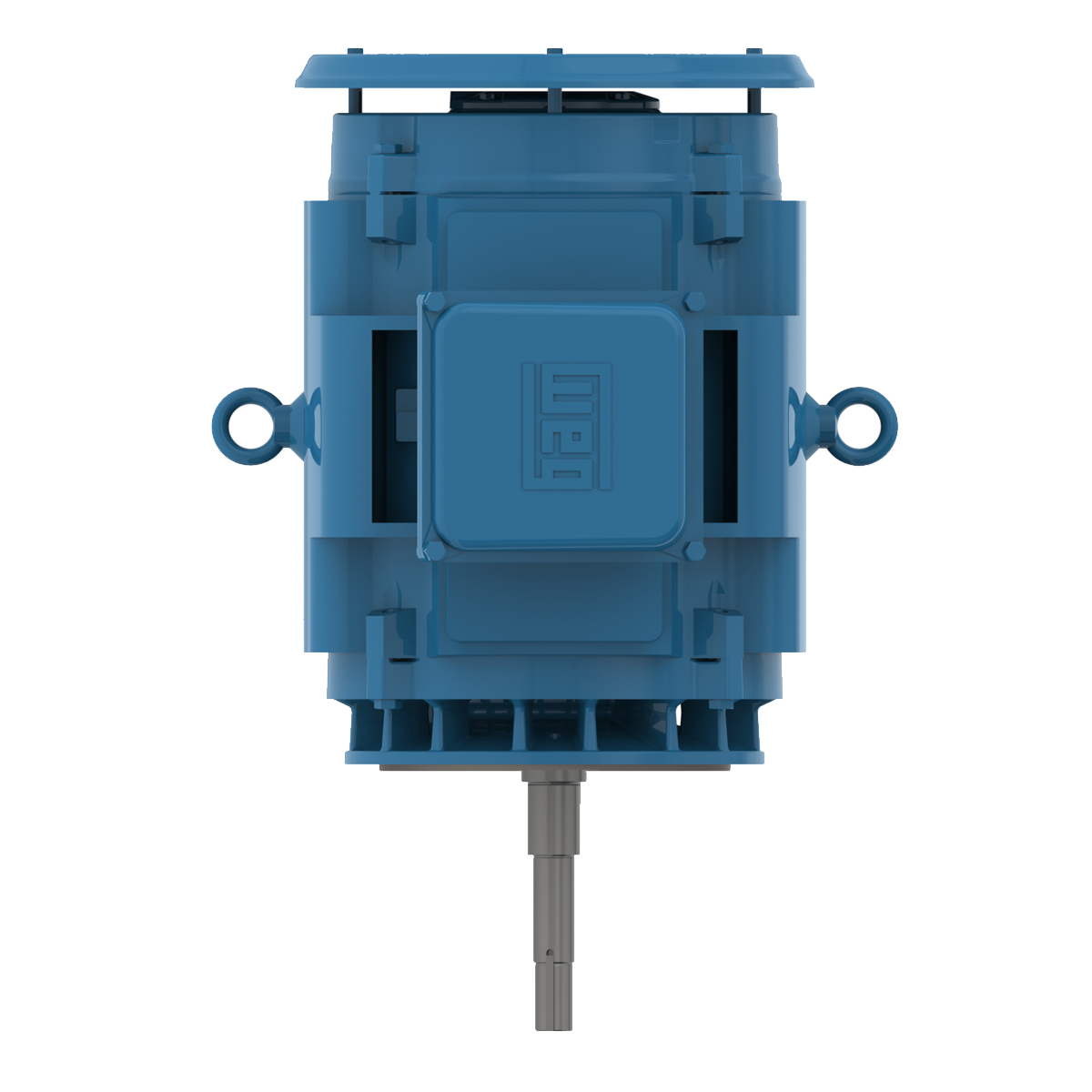

10036OT3E365JPV – WEG AC Motor

Close Coupled Pump NEMA Premium Efficiency 100 HP 2P 364/5JP 3Ph 230/460 V 60 Hz IC01 – ODP – Footless
Downloads: 10036OT3E365JPV

SKU: 10036OT3E365JPV Category: WEG Electric Corp - AC Motors - Previous Generation

Description
Additional information

Description

10036OT3E365JPV – WEG AC Motor. W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Downloads: 10036OT3E365JPV

Additional information

Weight	824 lbs
Manufacturer	WEG
Application	Close Coupled JM/JP
Frame Material	Cast Iron
Frame	364/5JP
Degree of Protection	IP23
Horsepower	100 HP
Kilowatts	75 kW
Phase	3 Ph
Rated Voltage	230/460 V
Rated Frequency	60 Hz
Rated Current	224/112 A
Rated Speed	3560 RPM
Synchronous speed	3600 RPM
Pole	2:00 PM
Service Factor	1.15 SF
Enclosure	IC01 – ODP
Mounting	W-6
Flange	C
Rated Torque	148 ft.lb
Terminal Box	Left position
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	83 dB(A)
Misc	Replaced by : 10036OT3E365JPV-W40 – 14833498
