OPT-2-PTXIN-IN – PT100/PT1000 Module

Description

Model ID: OPT-2-PTXIN-IN
Series: I/O Options
Manufacturer: Invertek Drives

PT100/PT1000 Module

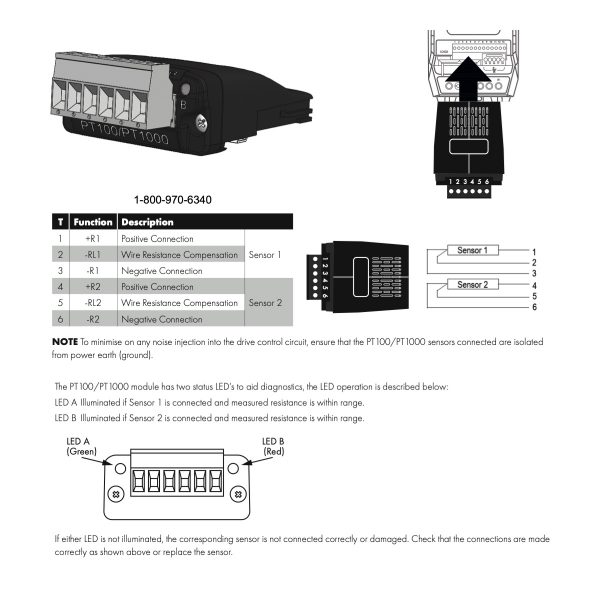

*The OPT-2-PTXIN-IN is an internally installed terminal option card which provides an additional two PT100 or PT1000 input for compatible drives, to monitor external temperatures. The inputs are automatically detected as PT100 or PT1000 based on the resistance measurement and a combination of PT100 and PT1000 sensors can be used on the same card. The temperature measurement can be read back via the scope channels 84 and 85 or as a data input in the built-in plc program.

Compatible with the Optidrive P2 and Optidrive ECO series.
