Description

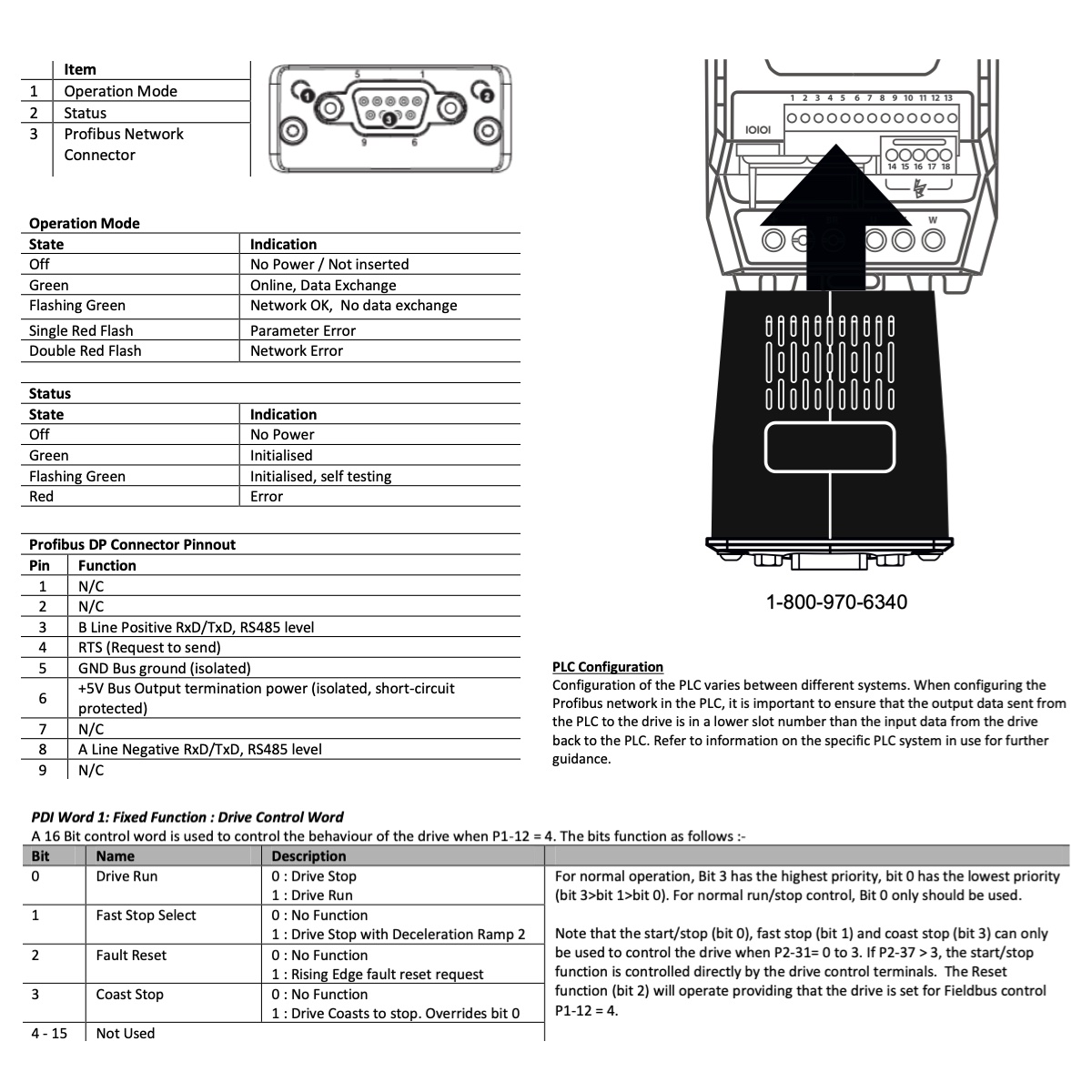

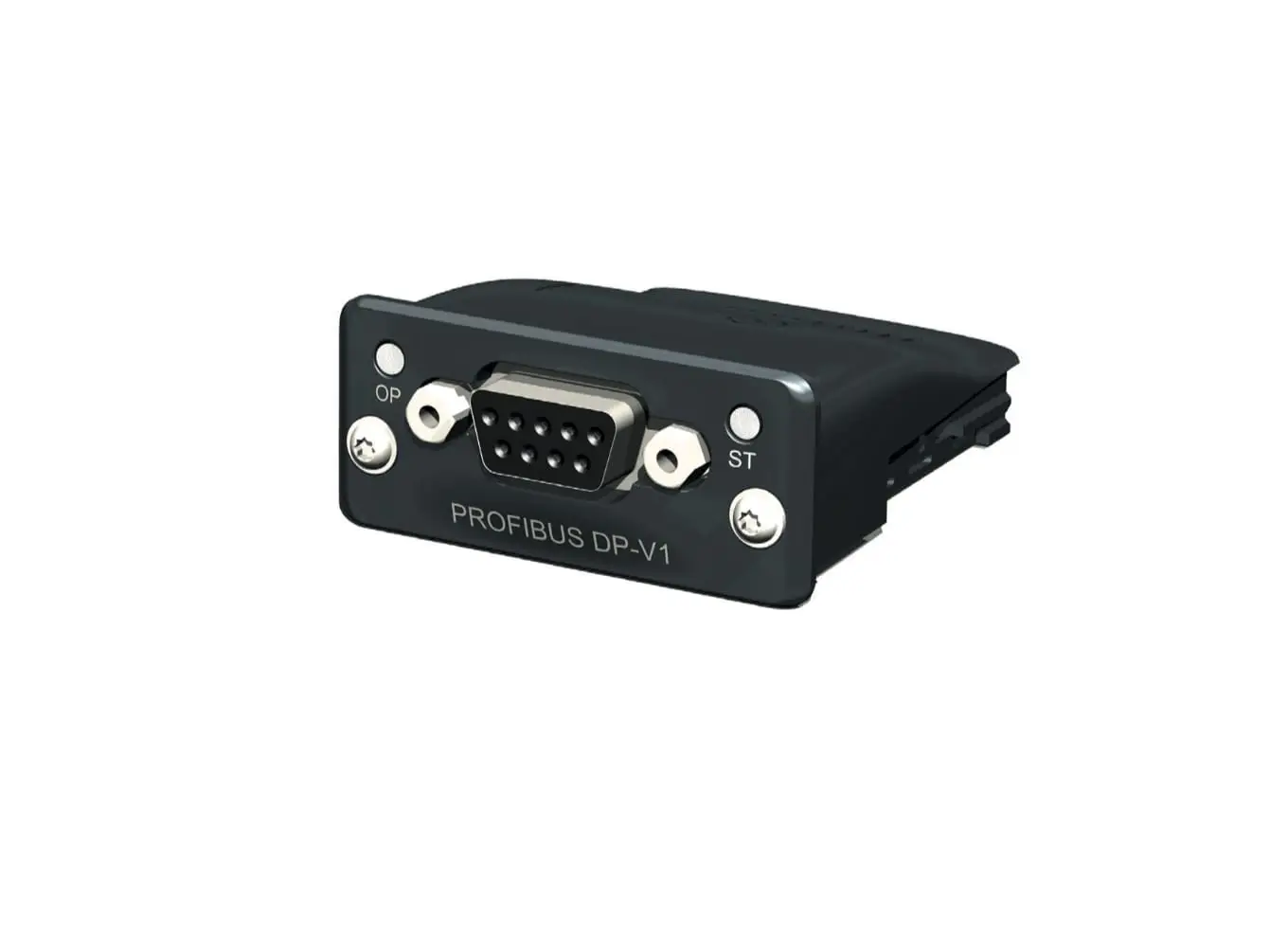

PROFIBUS DP Plug In Interface Module
The PROFIBUS DP Plug In Interface Module is intended to be installed in the Optidrive option slot, and allows the Optidrive to be connected to a PROFIBUS DP communication protocol. The interface offers the following functionality:
– Automatic Baud Rate Detection from 9.6kpbs to 12mbps
– Cyclic Process Data Exchange
– 4 Input Words from the network master to the Optidrive
– 4 Output Words from the Optidrive to the network master
– Parameter Access via DPV-1 Read / Write Services
Communication Interfaces
– Allow connection to a wide range of industrial network standards
– Simple control of the Optidrive from a PLC or control system
Multiple communication interfaces are available for our VFDs. These include stand-alone gateways and plug in modules. Four drives (eight for PROFIBUS) can be connected to a single gateway and controlled. Plug in modules allow each VFD to be directly connected to the network, providing enhanced functionality.
