ODV-3-440300-3F12-MN – 20HP, 30A, 380V – 480V, Three Phase

Description

VFD 20HP, 380V-480V, 3Ø

Model ID: ODV-3-440300-3F12-MN
Series: Optidrive ECO
Manufacturer: Invertek Drives

Variable Frequency Drive for Fan and Pump Applications

– Unique Eco Vector Sensorless Control
– Open Loop Permanent Magnet Vector
– Open Loop BLDC Vector
– Open Loop Synchronous Reluctance Vector
– BACnet and Modbus RTU onboard as standard
– Frame size 1-5 utilize film capacitor in the DC link, providing exceptionally low harmonic current distortion without compromising efficiency
– Frame size 6-8 include DC chokes and traditional electrolytic capacitors

Standards Compliance

– Low Voltage Directive: 2014/35/EU
– EMC Directive: 2014/30/EU
– Additional Conformance: UL, cUL, EAC, RCM
– Environmental Conditions: Designed to meet IEC 60721-3-3, in operation. IP20 Drives: 3S2/3C2. NEMA 12 and NEMA 4X Drives: 3S3/3C3

Application Features

– PID Control: Internal PID Controller, Multi-setpoint. Select Standby / Sleep Mode, Boost Function
– Fire Mode: Bidirectional, Selectable Speed Setpoint (Fixed / PID / Analog / Fieldbus)
– Load Monitoring: High Current Protection (Fan / Bump Blocked), Low Current Protection (Broken Belt / Shaft), Pump Blockage Detection with Cleaning
– Duty / Assist / Standby: Built-in Multi-Pump Support, Automatic Changeover on Fault, Automatic Changeover on Time, Fully Redundant

Pump Control Features

– Pump Blockage Detection: Pump load monitoring with autotune function, user configurable
– Pump Cleaning: Adjustable Bi-directional Pump Cleaning Cycle operation
– Multi-Pump Control: Control of fixed speed assist pumps (with cascade control module), Control of Duty, Assist and Standby variable speed pumps via internal Master – Slave network
– Pump Stir: Automatic pump stir to prevent sediment build-up

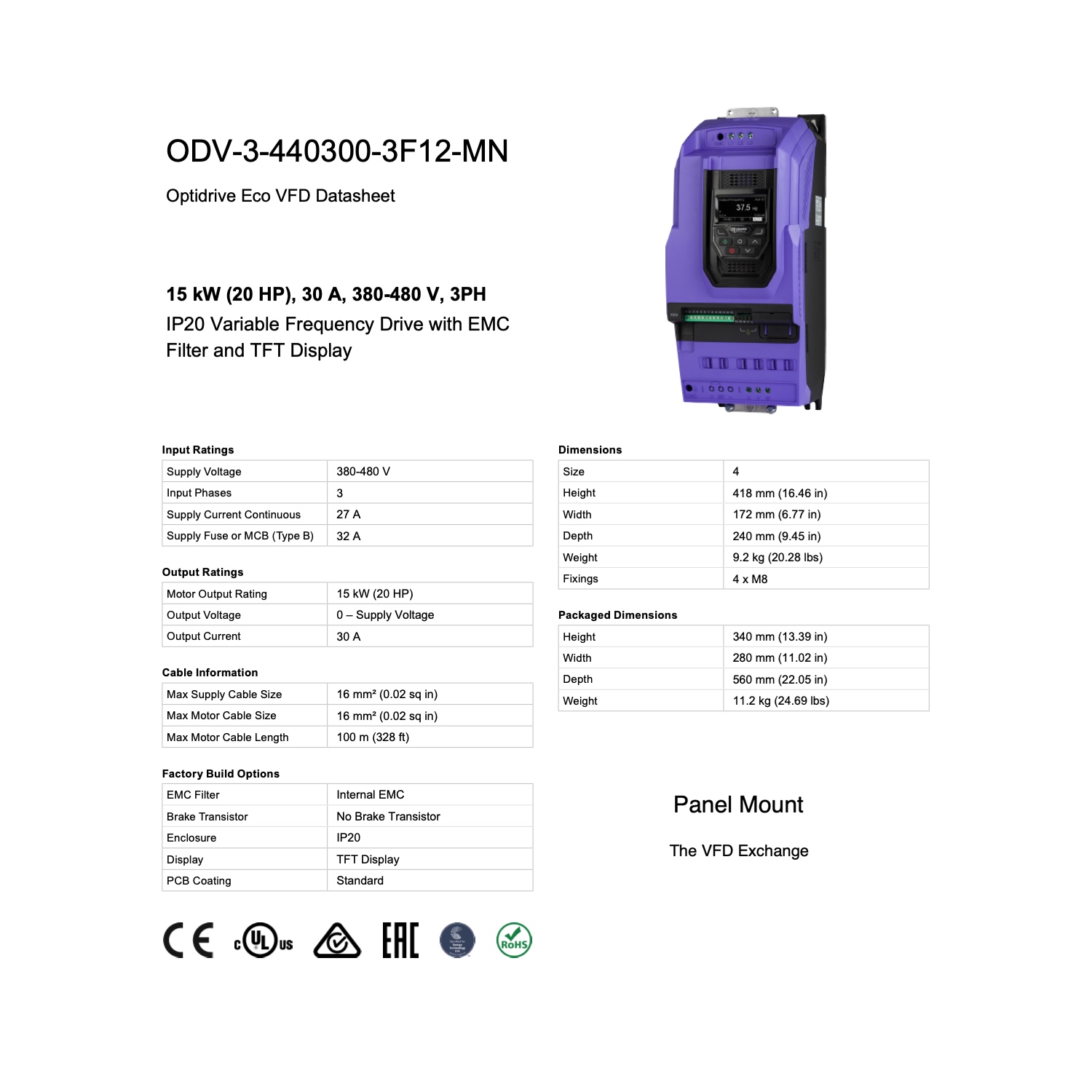

Click Here for Optidrive ECO Specifications
