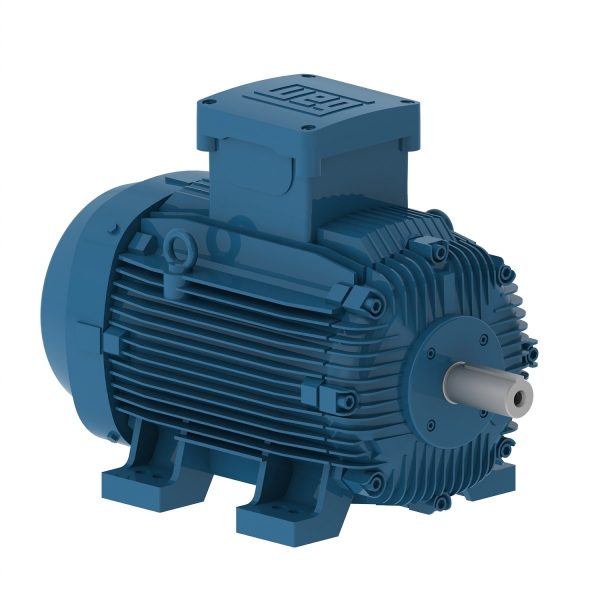

E05518XP3YAX250SMF3 WEG AC Motor

E05518XP3YAX250SMF3 WEG AC Motor - Image 2

E05518XP3YAX250SMF3 WEG AC Motor

E05518XP3YAX250SMF3 – WEG AC Motor

W21 Explosion Proof IE2 55 kW 4P 250S/M 3Ph 380-415/660//440-460 V 50 Hz IC411 – TEFC – B3T
Downloads: E05518XP3YAX250SMF3

SKU: E05518XP3YAX250SMF3 Category: WEG Electric Corp - AC Motors - Previous Generation

Description
Additional information

Description

E05518XP3YAX250SMF3 – WEG AC Motor. W21Xd is an explosion proof motor especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Zone 1 and Zone 2.

Downloads: E05518XP3YAX250SMF3

Additional information

Weight	1194 lbs
Manufacturer	WEG
Application	Hazardous Area IEC
Frame Material	Cast Iron
Frame	250S/M
Degree of Protection	IP55
Horsepower	75 HP
Kilowatts
Phase	3 Ph
Rated Voltage	380-415/660//440-460 V
Rated Frequency	50 Hz
Rated Current	93.6 A
Rated Speed	1480 RPM
Synchronous speed	1500 RPM
Pole	4:00 PM
Service Factor
Enclosure	IC411 – TEFC
Mounting	Foot-mounted
Flange	Without
Rated Torque	262 ft.lb
Terminal Box	Top
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	70.0 dB(A)
Misc	Replaced by : E05518XP3YAX250SMF3W – 12430344
