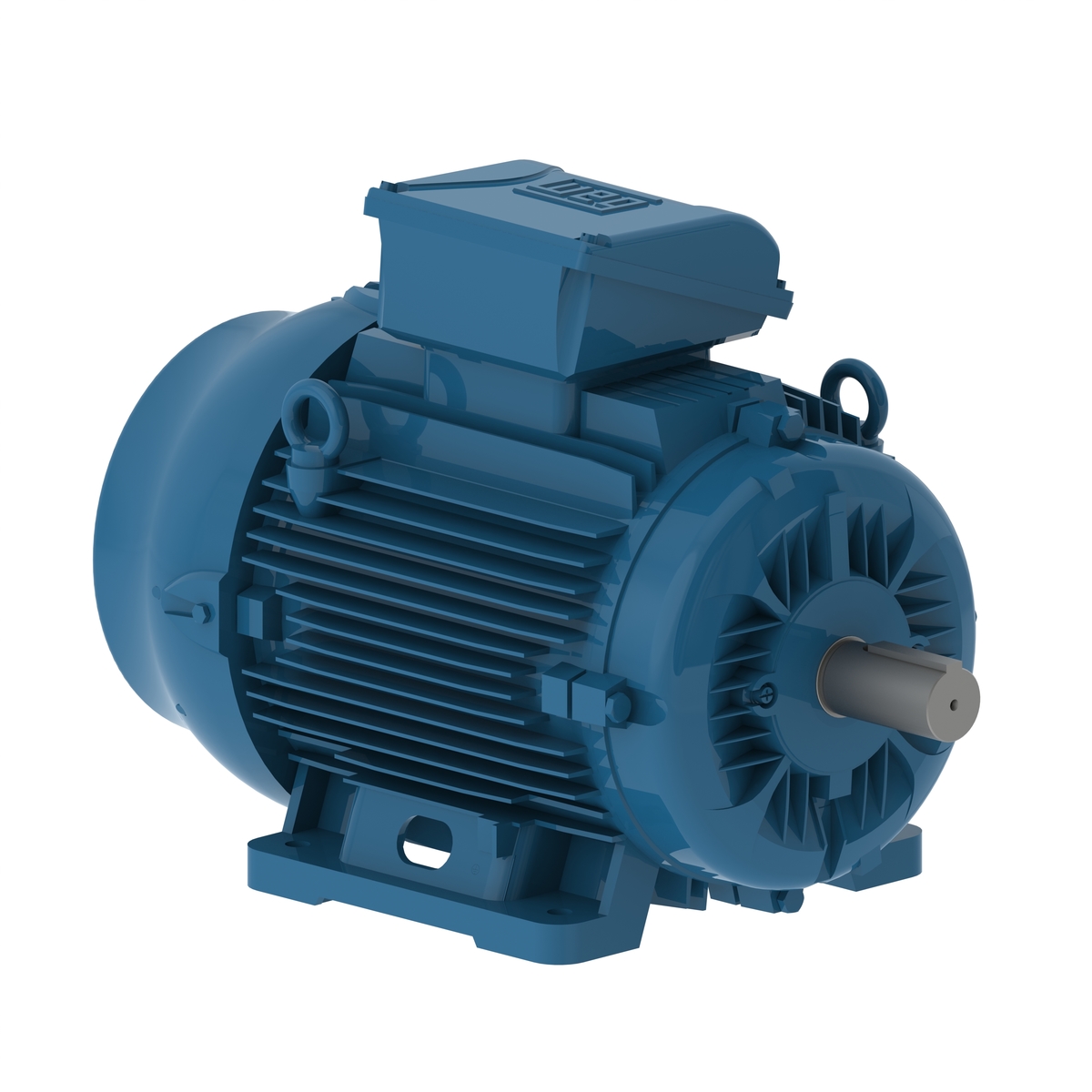

E03018EP3YAX200LF3-W WEG AC Motor
E03018EP3YAX200LF3-W – WEG AC Motor
W22Xec IE2 30 kW 4P 200L 3Ph 380-400-415/660-690//460 V 50 Hz IC411 – TEFC – B3T
Downloads: E03018EP3YAX200LF3-W
Additional information
| Weight | 525 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Hazardous Area IEC |
| Frame Material | Cast Iron |
| Frame | 200L |
| Degree of Protection | IP55 |
| Horsepower | 40 HP |
| Kilowatts | |
| Phase | 3 Ph |
| Rated Voltage | 380-400-415/660-690//460 V |
| Rated Frequency | 50 Hz |
| Rated Current | 57.9/33.6 A |
| Rated Speed | 1475 RPM |
| Synchronous speed | 1500 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.00 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 143 ft.lb |
| Terminal Box | Top |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 65.0 dB(A) |
| Misc |
