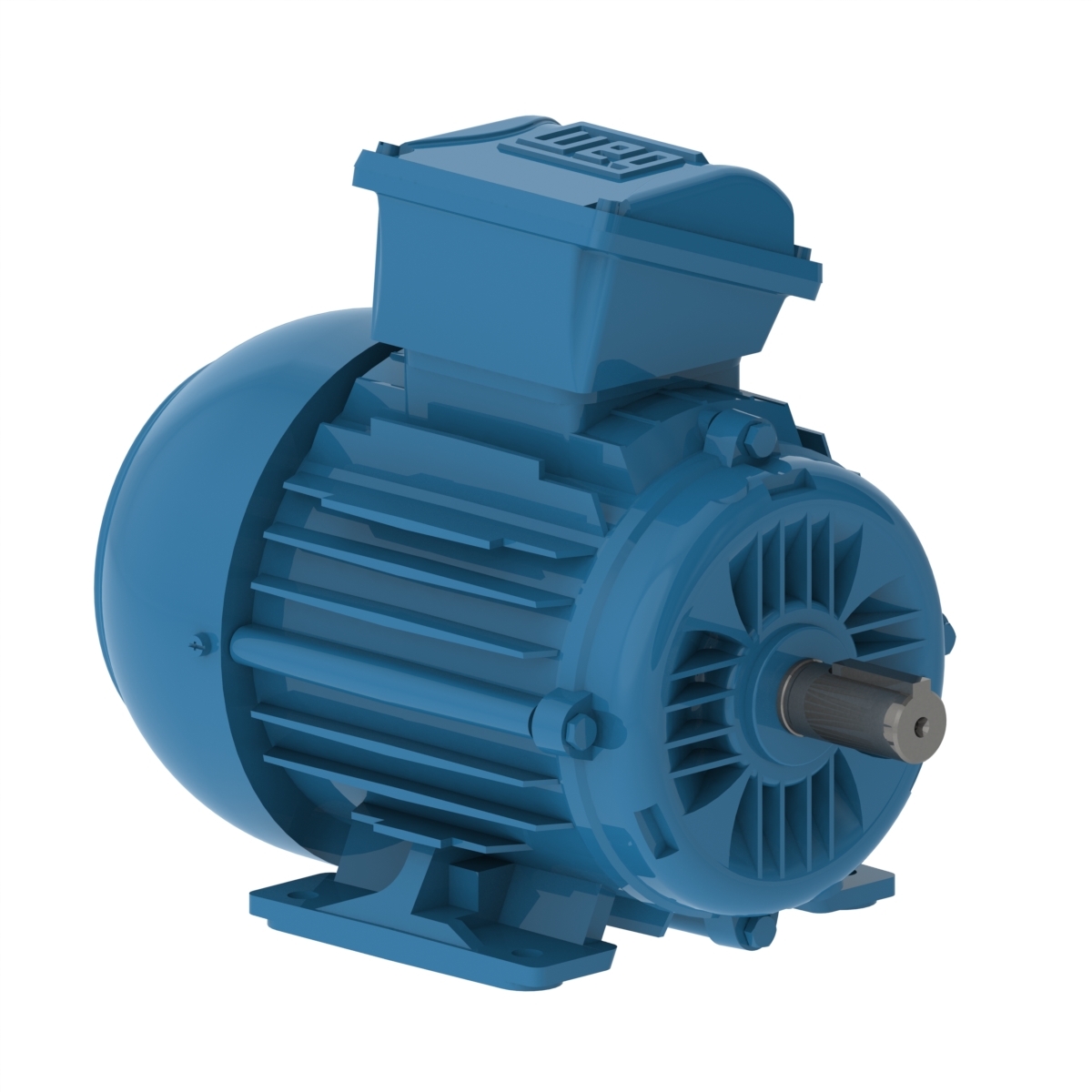

E00236ET3WAX90LF3-W2 WEG AC Motor
E00236ET3WAX90LF3-W2 – WEG AC Motor
W22Xec IE3 2.2 kW 2P 90L 3Ph 220-230-240/380-400-415//460 V 50 Hz IC411 – TEFC – B3T
Downloads: E00236ET3WAX90LF3-W2
Additional information
| Weight | 55.9 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Hazardous Area IEC |
| Frame Material | Cast Iron |
| Frame | 90L |
| Degree of Protection | IP55 |
| Horsepower | 3 HP |
| Kilowatts | |
| Phase | 3 Ph |
| Rated Voltage | 220-230-240/380-400-415//460 V |
| Rated Frequency | 50 Hz |
| Rated Current | 7.84/4.51 A |
| Rated Speed | 2885 RPM |
| Synchronous speed | 3000 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.00 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 5.37 ft.lb |
| Terminal Box | Top |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 62.0 dB(A) |
| Misc |
