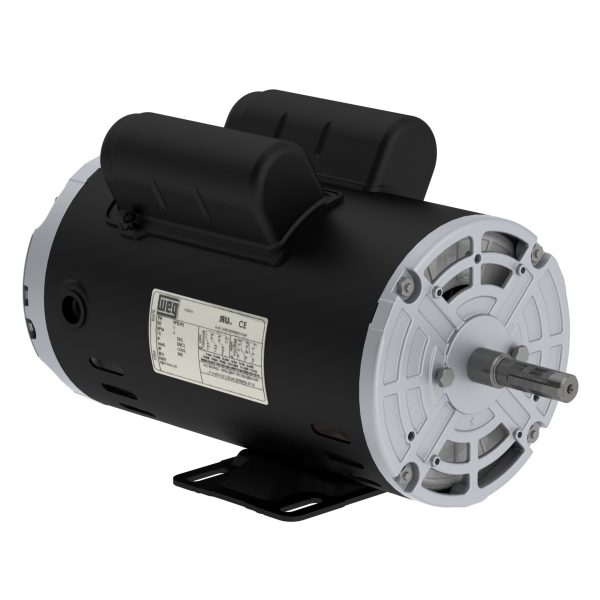

.7518OT1B56-S WEG AC Motor

.7518OT1B56-S WEG AC Motor - Image 2

.7518OT1B56-S WEG AC Motor

.7518OT1B56-S – WEG AC Motor

Rolled Steel 0.75 HP 4P 56C 1Ph 115/208-230 V 60 Hz IC01 – ODP – Footless
Downloads: .7518OT1B56-S

SKU: .7518OT1B56-S Category: WEG Electric Corp - AC Motors - 1 Phase & 3 Phase

Description
Additional information

Description

.7518OT1B56-S – WEG AC Motor. The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for the severest applications.

Downloads: .7518OT1B56-S

Additional information

Weight	30.5 lbs
Manufacturer	WEG
Application	General Purpose
Frame Material	Rolled Steel
Frame	56
Degree of Protection
Horsepower	0.75 HP
Kilowatts	0.55 kW
Phase	1 Ph
Rated Voltage	115/208-230 V
Rated Frequency	60 Hz
Rated Current	6.80/3.76-3.40 A
Rated Speed	1750 RPM
Synchronous speed	1800 RPM
Pole	4:00 PM
Service Factor	1.25 (1.00 @ 208V) SF
Enclosure	IC01 – ODP
Mounting	Foot-mounted
Flange	Without
Rated Torque	2.25 ft.lb
Terminal Box	Without Terminal Box
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	52.0 dB(A)
