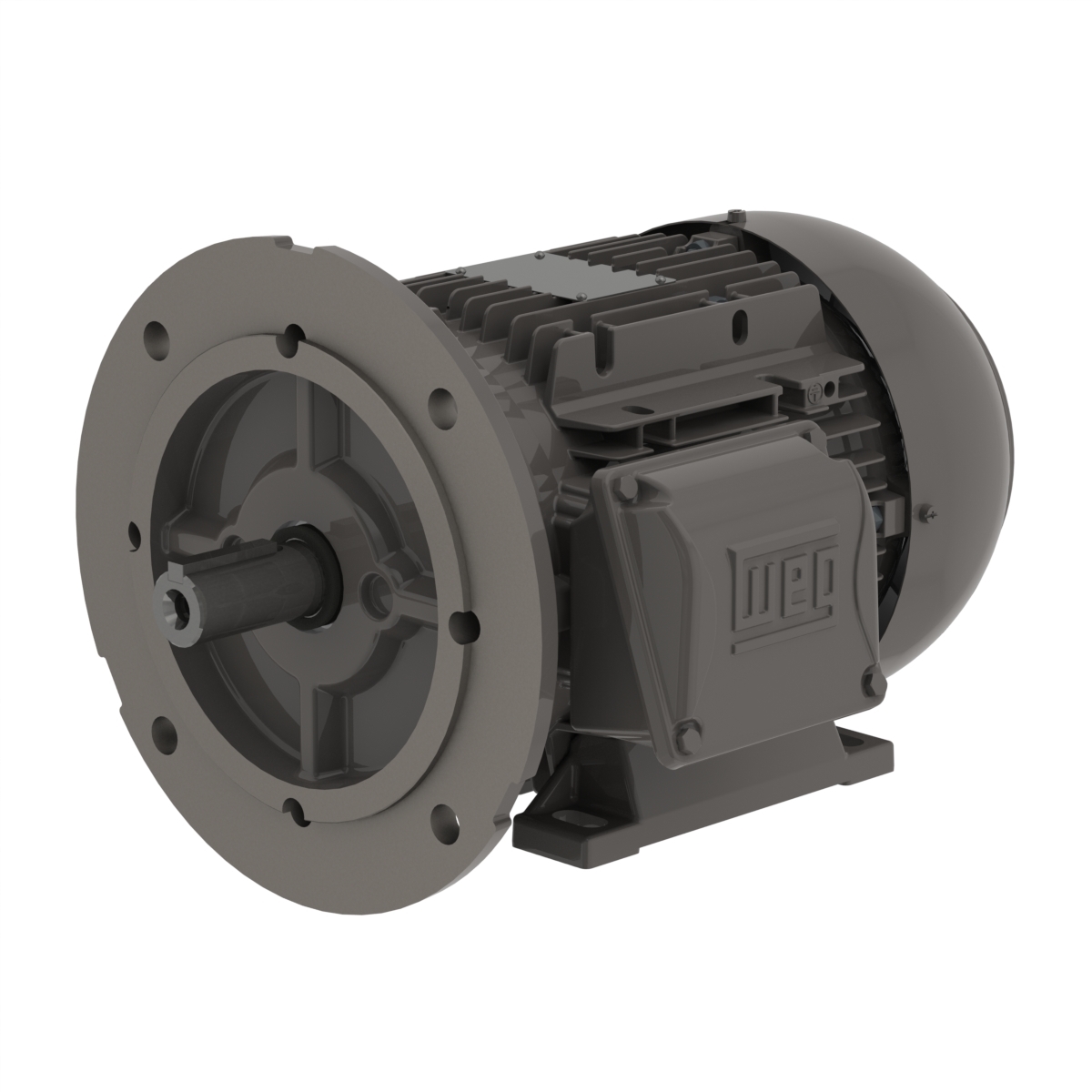

.5518EP3EAL80FF-W22 WEG AC Motor
.5518EP3EAL80FF-W22 – WEG AC Motor
Multimounting High Efficiency 0.75 HP 4P 80 3Ph 230/460//380-415 V 60 Hz IC411 – TEFC – B35L(E)
Downloads: .5518EP3EAL80FF-W22
Additional information
| Weight | 31.9 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose Multimounting |
| Frame Material | Aluminum |
| Frame | 80 |
| Degree of Protection | IP55 |
| Horsepower | 0.75 HP |
| Kilowatts | 0.55 kW |
| Phase | 3 Ph |
| Rated Voltage | 230/460//380-415 V |
| Rated Frequency | 60 Hz |
| Rated Current | 1.35 A |
| Rated Speed | 1430 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | FF |
| Rated Torque | 2.75 ft.lb |
| Terminal Box | Right position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 44.0 dB(A) |
| Misc |
