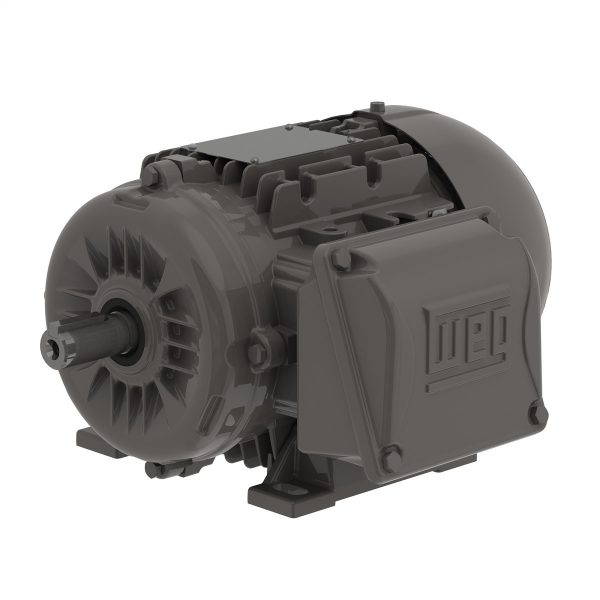

.5509EP3EAL90L-W22 WEG AC Motor

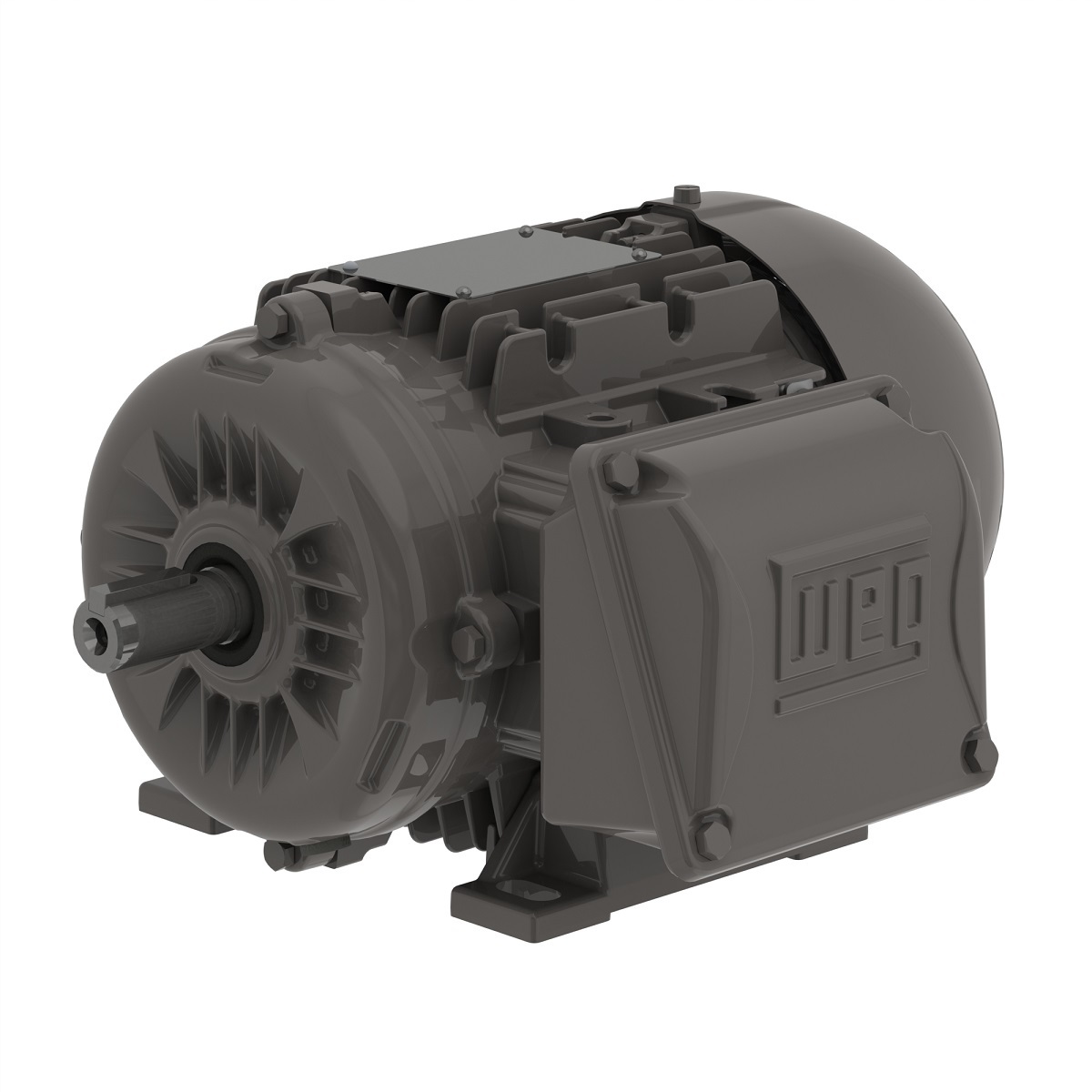

.5509EP3EAL90L-W22 WEG AC Motor - Image 2

.5509EP3EAL90L-W22 WEG AC Motor

.5509EP3EAL90L-W22 – WEG AC Motor

Multimounting High Efficiency 0.75 HP 8P 90S/L 3Ph 230/460//380-415 V 60 Hz IC411 – TEFC – B3L(E)
Downloads: .5509EP3EAL90L-W22

SKU: .5509EP3EAL90L-W22 Category: WEG Electric Corp - AC Motors - 1 Phase & 3 Phase

Description
Additional information

Description

.5509EP3EAL90L-W22 – WEG AC Motor. Aluminum frame and removable feet being able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, these motors are totally interchangeable with the cast iron motors.

Downloads: .5509EP3EAL90L-W22

Additional information

Weight	40.9 lbs
Manufacturer	WEG
Application	General Purpose Multimounting
Frame Material	Aluminum
Frame	90S/L
Degree of Protection	IP55
Horsepower	0.75 HP
Kilowatts	0.55 kW
Phase	3 Ph
Rated Voltage	230/460//380-415 V
Rated Frequency	60 Hz
Rated Current	2.01 A
Rated Speed	695 RPM
Synchronous speed	900 RPM
Pole	8:00 PM
Service Factor
Enclosure	IC411 – TEFC
Mounting	Foot-mounted
Flange	Without
Rated Torque	5.67 ft.lb
Terminal Box	Right position
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	44.0 dB(A)
