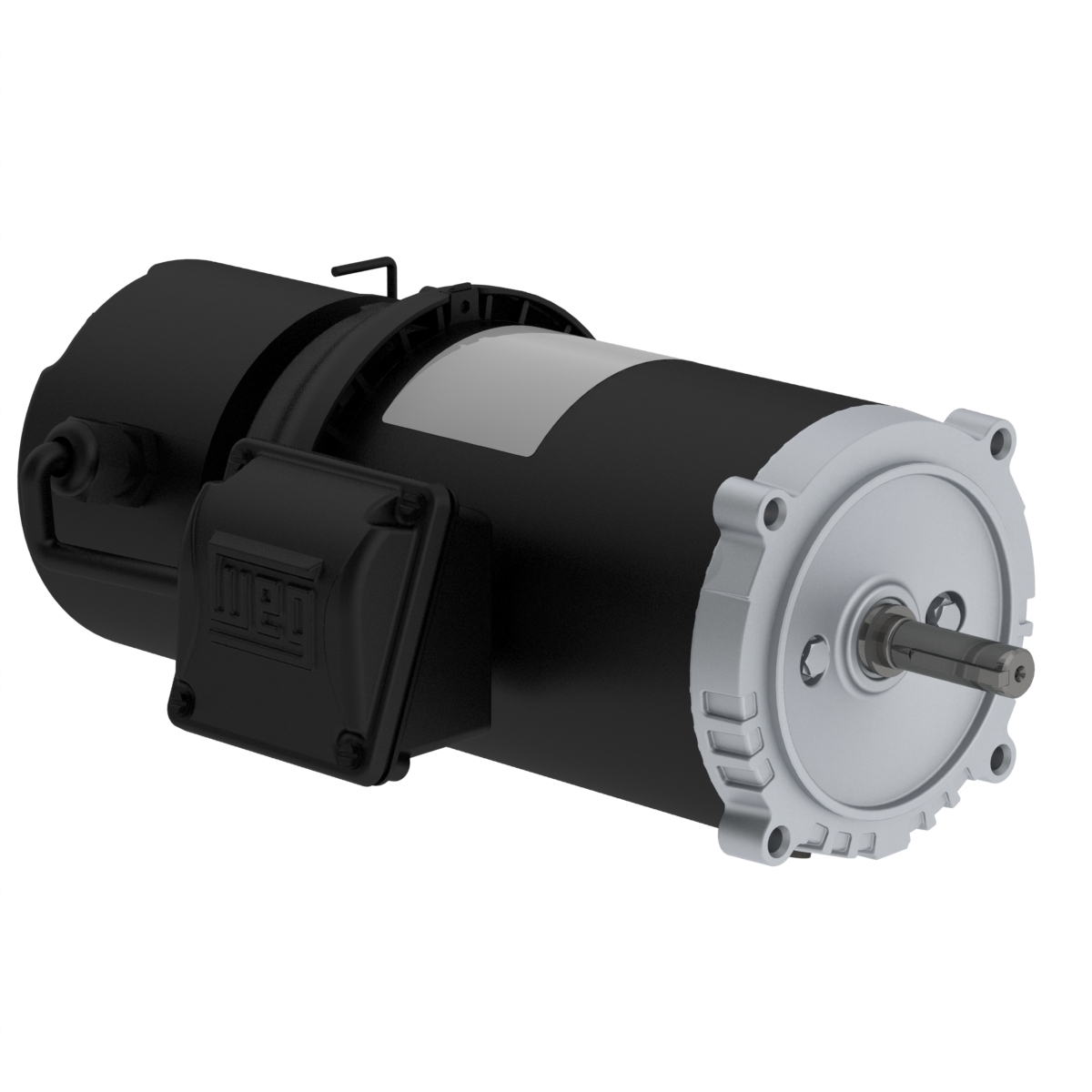

.5018ES3EBMW56CFL-S WEG AC Motor

.5018ES3EBMW56CFL-S WEG AC Motor - Image 2

.5018ES3EBMW56CFL-S WEG AC Motor

.5018ES3EBMW56CFL-S – WEG AC Motor

Rolled Steel Standard Efficiency 0.5 HP 4P W56C 3Ph 208-230/460//190-220/380-415 V 60 Hz IC411 – TEFC – Footless
Downloads: .5018ES3EBMW56CFL-S

SKU: .5018ES3EBMW56CFL-S Category: WEG Electric Corp - AC Motors - 1 Phase & 3 Phase

Description
Additional information

Description

.5018ES3EBMW56CFL-S – WEG AC Motor. The W01 brake motor line has been designed for equipment and applications that require fast stops for safety, accurate positioning and time saving. This is possible since the brakes are locked with springs and electrically released. It also provides the brake operation when failures are presented, such as interruption or failure on the power supply, so the brake will hold the load as protection. These motors are the best option to operate applications requiring safety stop and, thanks to its AC brakes, dispensing the use of rectifiers.

Downloads: .5018ES3EBMW56CFL-S

Additional information

Weight	25.8 lbs
Manufacturer	WEG
Application	Brake Motor
Frame Material	Rolled Steel
Frame	W56C
Degree of Protection	IP55
Horsepower	0.5 HP
Kilowatts	0.37 kW
Phase	3 Ph
Rated Voltage	208-230/460//190-220/380-415 V
Rated Frequency	60//50 Hz
Rated Current	1.98-1.79/0.896 A
Rated Speed	1730 RPM
Synchronous speed	1800 RPM
Pole	4:00 PM
Service Factor	1.15 (1.00 @ 208V) SF
Enclosure	IC411 – TEFC
Mounting	Footless
Flange	C
Rated Torque	1.52 ft.lb
Terminal Box
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	50.0 dB(A)
