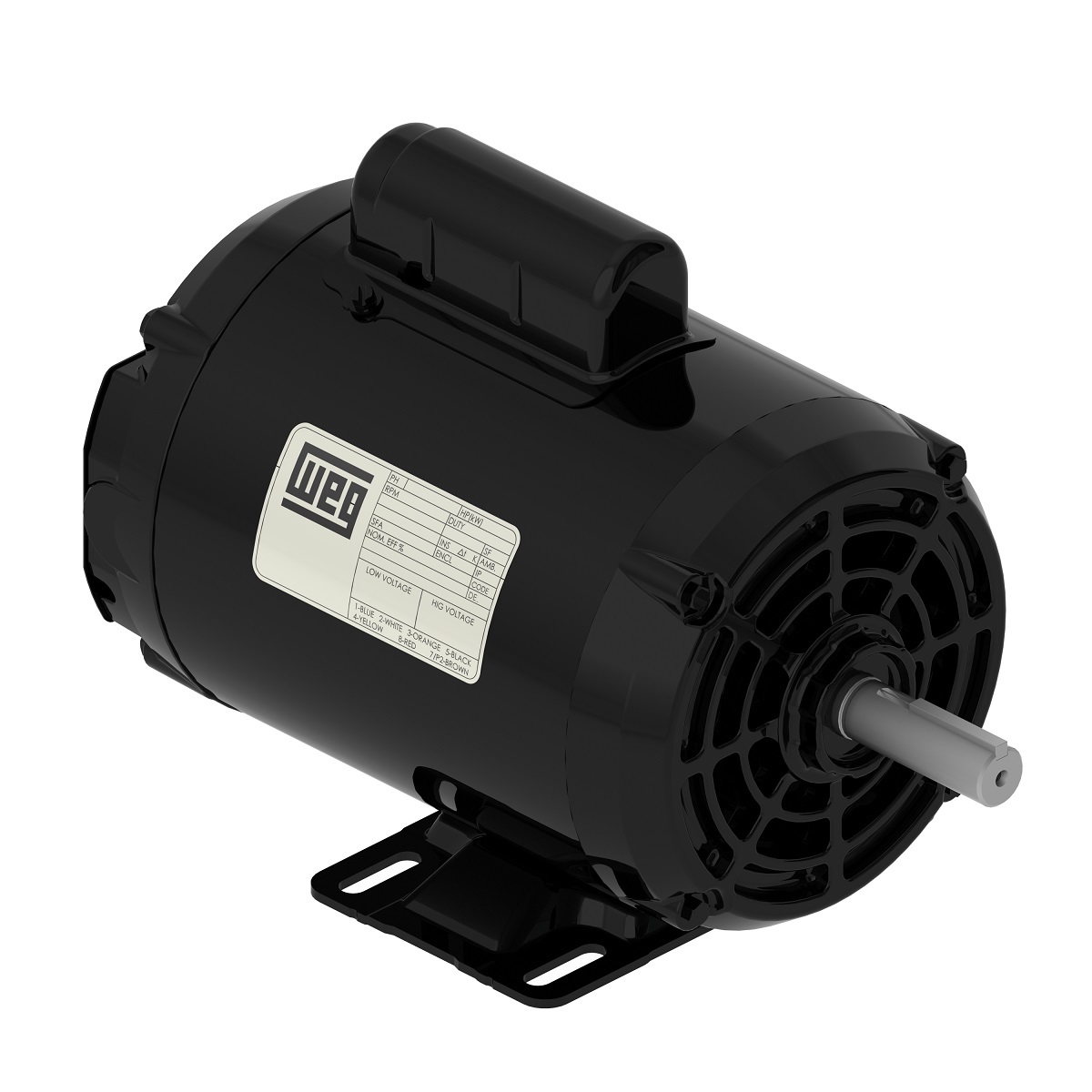

.5012ES1B56-S WEG AC Motor
.5012ES1B56-S – Rolled Steel 0.75 HP 2P 56 1Ph 115/208-230 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: .5012ES1B56-S
Additional information
| Weight | 32.7 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Rolled Steel |
| Frame | 56 |
| Degree of Protection | IP55 |
| Horsepower | 0.5 HP |
| Kilowatts | 0.37 kW |
| Phase | 1 Ph |
| Rated Voltage | 115/208-230 V |
| Rated Frequency | 60 Hz |
| Rated Current | 6.40/3.54-3.20 A |
| Rated Speed | 1170 RPM |
| Synchronous speed | 1200 RPM |
| Pole | 6:00 PM |
| Service Factor | 1.15 (1.00 @ 208V) SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 2.24 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 54.0 dB(A) |
| Misc |
