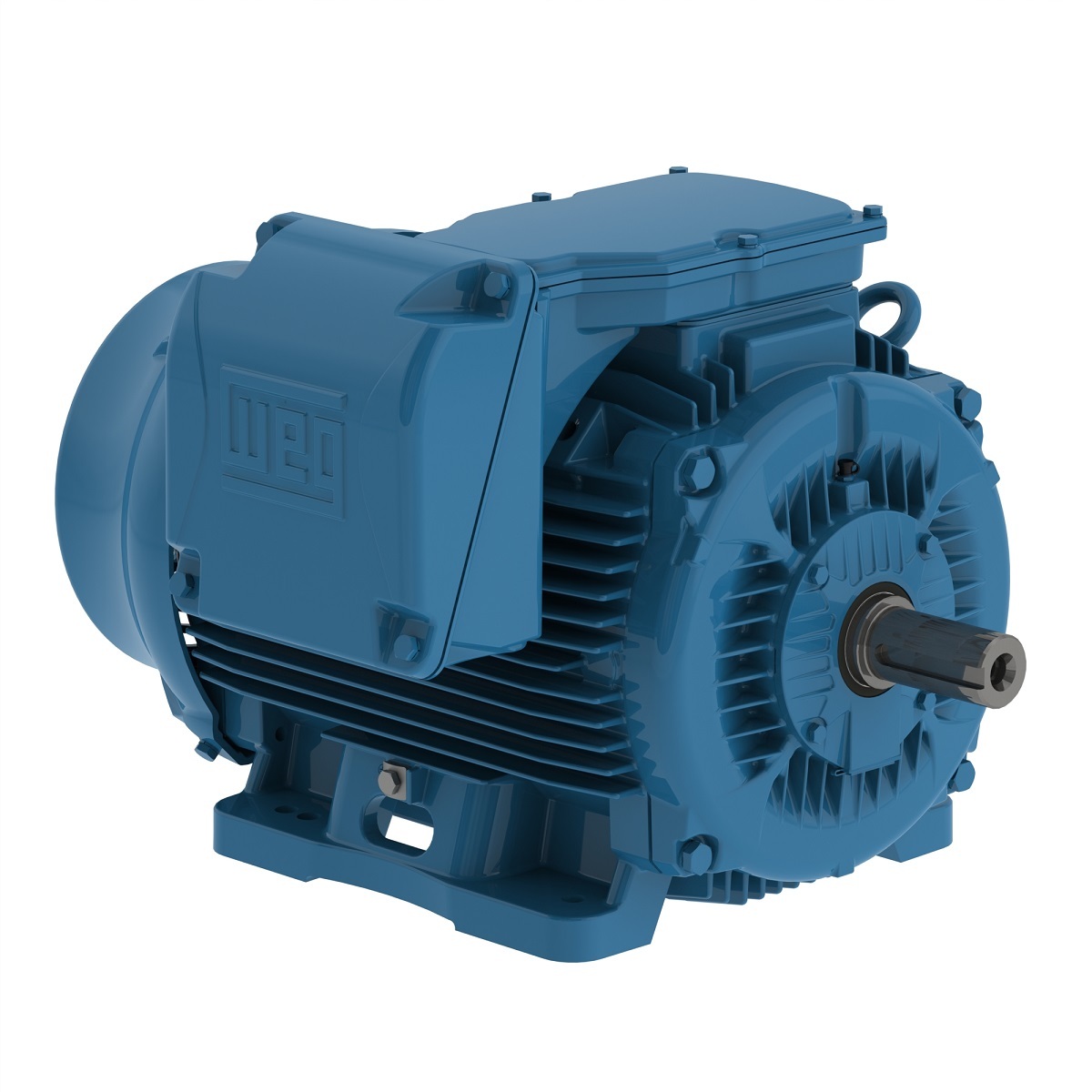

30012ET3GKD449T-W22 WEG AC Motor
30012ET3GKD449T-W22 – WEG AC Motor
W22 NEMA Premium Efficiency 300 HP 6P 447/9T 3Ph 460 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 30012ET3GKD449T-W22
Additional information
| Weight | 3113 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Severe Duty |
| Frame Material | Cast Iron |
| Frame | 447/9T |
| Degree of Protection | IP55 |
| Horsepower | 300 HP |
| Kilowatts | 220 kW |
| Phase | 3 Ph |
| Rated Voltage | 460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 356 A |
| Rated Speed | 1189 RPM |
| Synchronous speed | 1200 RPM |
| Pole | 6:00 PM |
| Service Factor | 1.00 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 1320 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 70.0 dB(A) |
| Misc |
