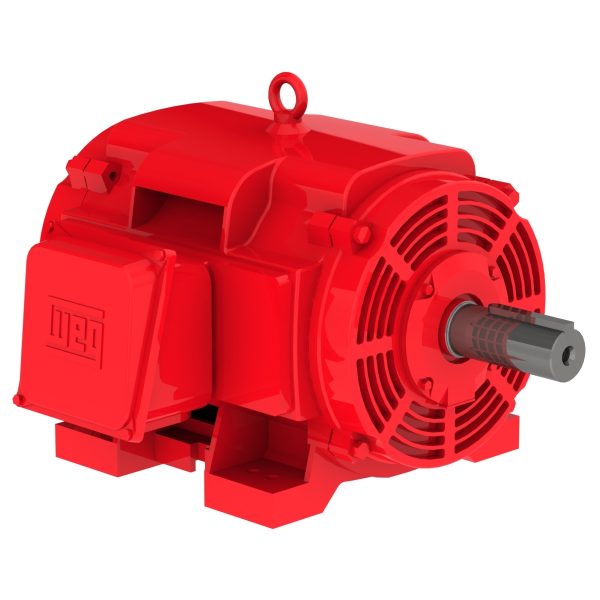

20036OP3JFP444TS WEG AC Motor
20036OP3JFP444TS – WEG AC Motor
ODP High Efficiency 200 HP 2P 444/5TS 3Ph 380 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 20036OP3JFP444TS
Additional information
| Weight | 1377 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Fire Pump |
| Frame Material | Cast Iron |
| Frame | 444/5TS |
| Degree of Protection | IP23 |
| Horsepower | 200 HP |
| Kilowatts | 150 kW |
| Phase | 3 Ph |
| Rated Voltage | 380 V |
| Rated Frequency | 60 Hz |
| Rated Current | 277 A |
| Rated Speed | 3570 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC01 – ODP |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 294 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 85.0 dB(A) |
| Misc | Replaced by : 20036OP3JFP444TS-W40 – 14282970 |
