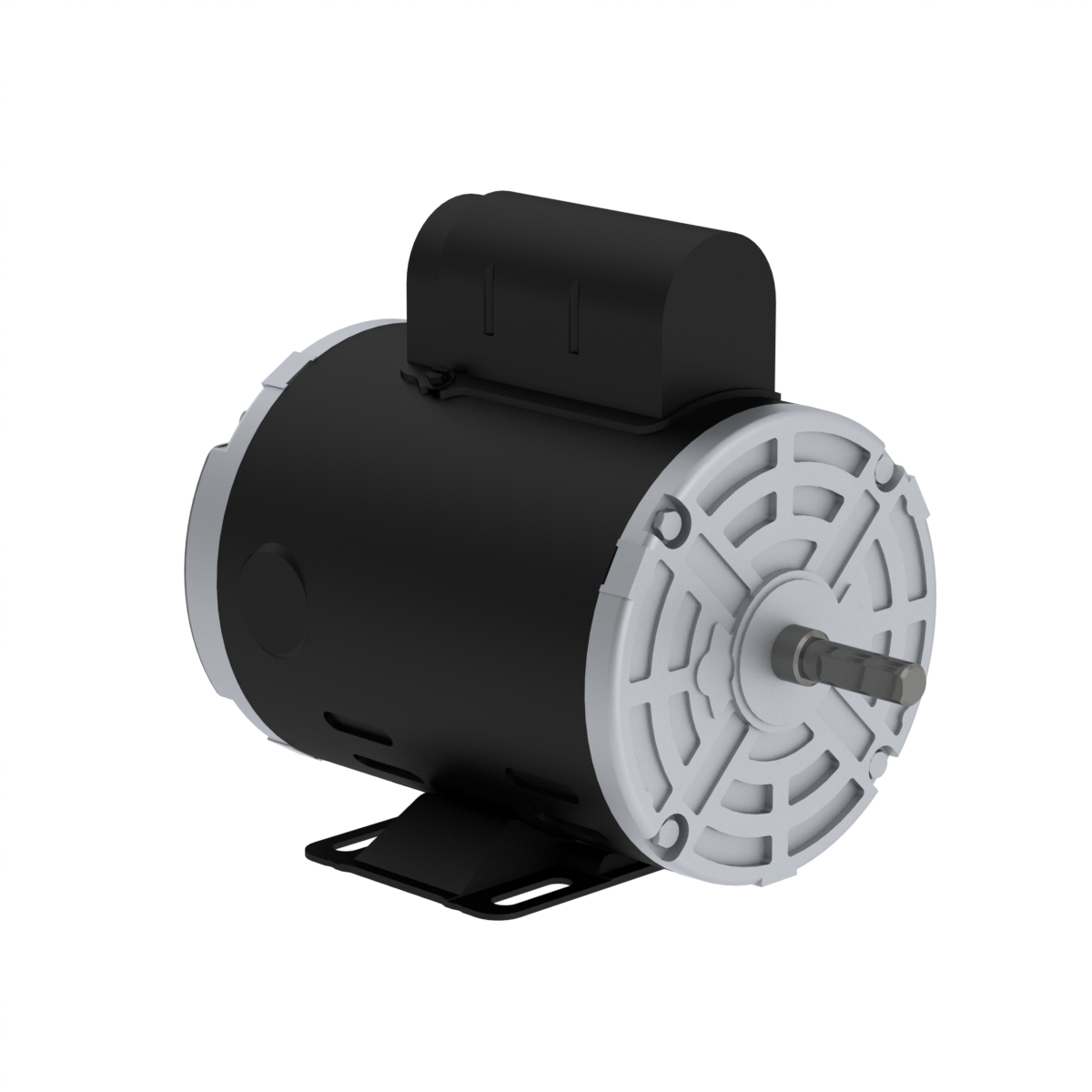

.1636OS1B48-S WEG AC Motor
.1636OS1B48-S – Rolled Steel 0.25 HP 2P 48 1Ph 115/208-230 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: .1636OS1B48-S
Additional information
| Weight | 14.3 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Rolled Steel |
| Frame | 48 |
| Degree of Protection | |
| Horsepower | 0.16 HP |
| Kilowatts | 0.12 kW |
| Phase | 1 Ph |
| Rated Voltage | 115/208-230 V |
| Rated Frequency | 60 Hz |
| Rated Current | 2.82/1.56-1.41 A |
| Rated Speed | 3500 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.35 (1.00 @ 208V) SF |
| Enclosure | IC01 – ODP |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 0.240 ft.lb |
| Terminal Box | Without Terminal Box |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 56.0 dB(A) |
