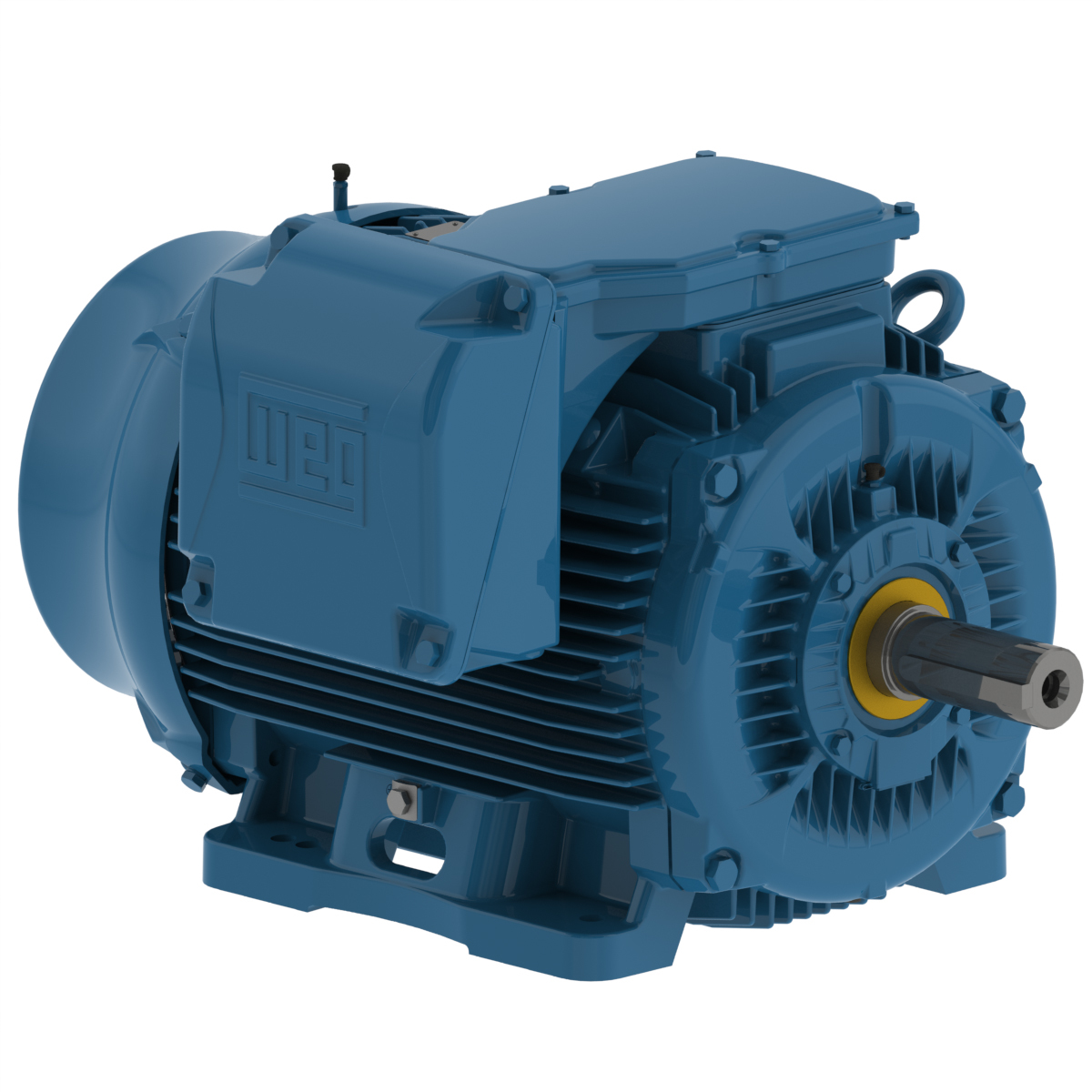

15009ST3QIERB447T-W2 WEG AC Motor
15009ST3QIERB447T-W2 – WEG AC Motor
W22 IEEE 841 NEMA Premium Efficiency 150 HP 8P 445/7T 3Ph 460 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 15009ST3QIERB447T-W2
Additional information
| Weight | 2221 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Severe Duty |
| Frame Material | Cast Iron |
| Frame | 445/7T |
| Degree of Protection | IP56 |
| Horsepower | 150 HP |
| Kilowatts | 110 kW |
| Phase | 3 Ph |
| Rated Voltage | 460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 185 A |
| Rated Speed | 890 RPM |
| Synchronous speed | 900 RPM |
| Pole | 8:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 885 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 63.0 dB(A) |
| Misc |
