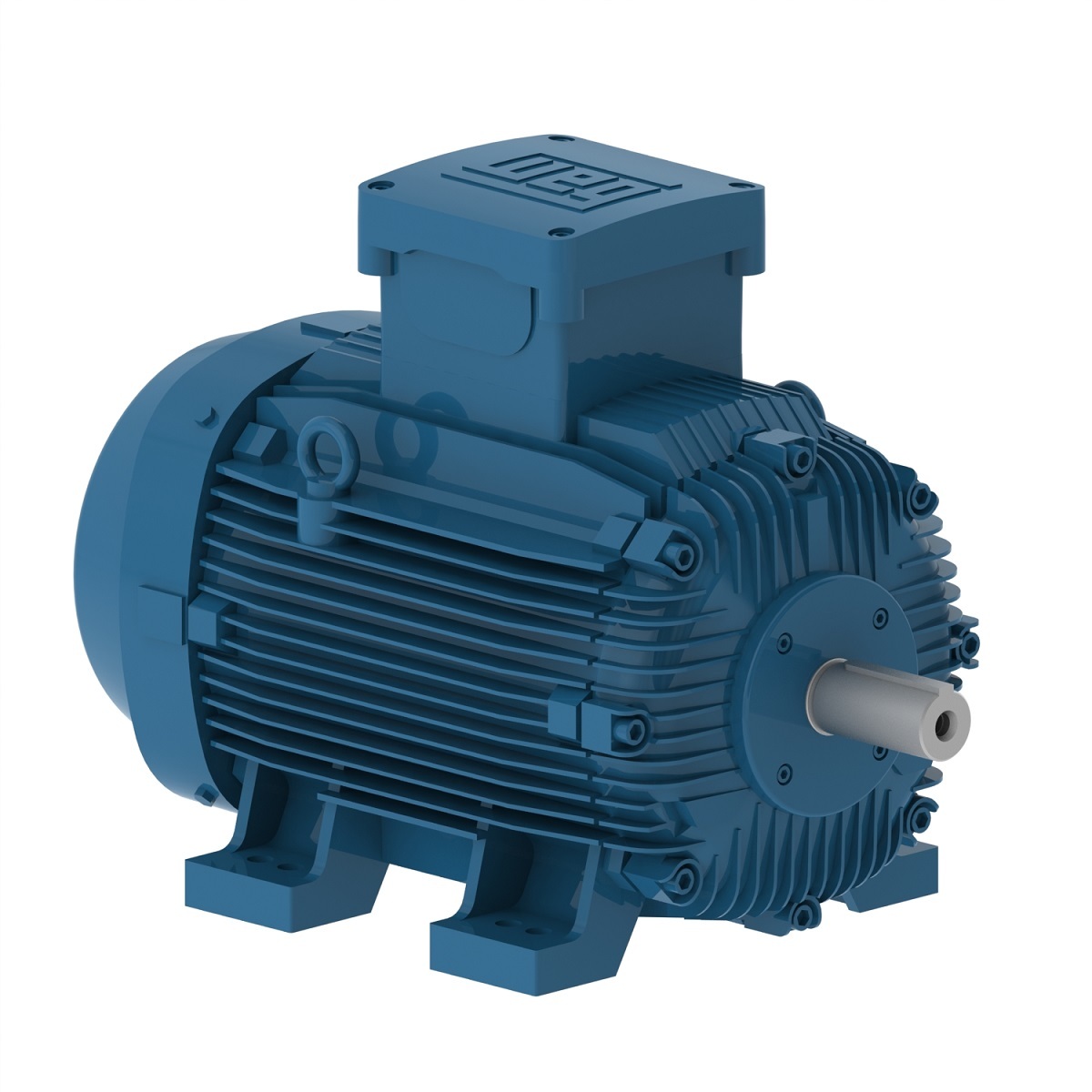

13585457 WEG AC Motor

13585457 WEG AC Motor - Image 2

13585457 WEG AC Motor

13585457 – WEG AC Motor

W21 Explosion Proof IE2 45 kW 6P 280S/M 3Ph 380-415/660//440-460 V 50 Hz IC411 – TEFC – B3T
Downloads: 13585457

SKU: 13585457 Category: WEG Electric Corp - AC Motors - 1 Phase & 3 Phase

Description
Additional information

Description

13585457 – WEG AC Motor. W21Xd is an explosion proof motor especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Zone 1 and Zone 2.

Downloads: 13585457

Additional information

Weight	1640 lbs
Manufacturer	WEG
Application	Hazardous Area IEC
Frame Material	Cast Iron
Frame	280S/M
Degree of Protection	IP55
Horsepower	60 HP
Kilowatts
Phase	3 Ph
Rated Voltage	380-415/660//440-460 V
Rated Frequency	50 Hz
Rated Current	83.2 A
Rated Speed	985 RPM
Synchronous speed	1000 RPM
Pole	6:00 PM
Service Factor
Enclosure	IC411 – TEFC
Mounting	Foot-mounted
Flange	Without
Rated Torque	322 ft.lb
Terminal Box	Top
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	66.0 dB(A)
