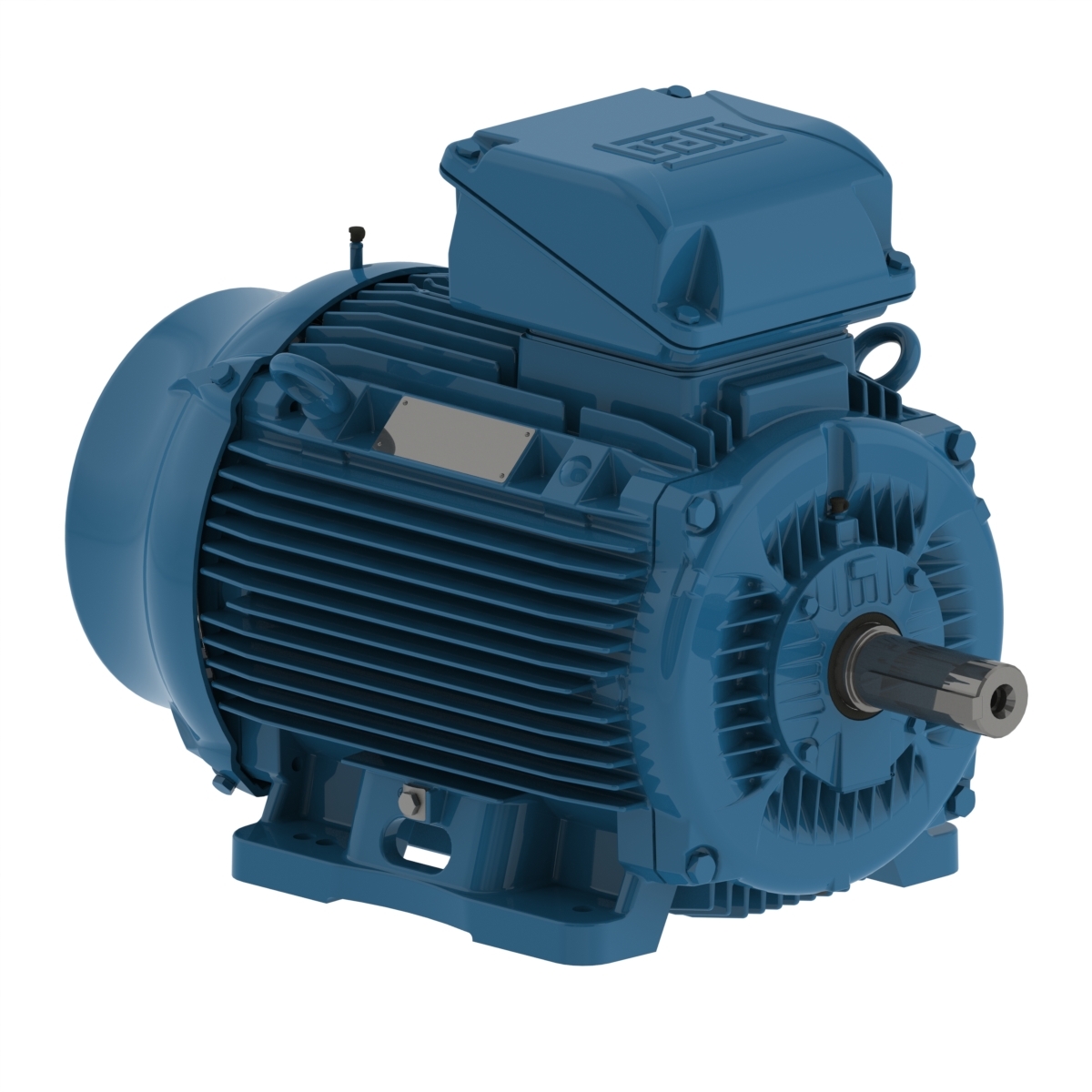

12438187 WEG AC Motor
12438187 – WEG AC Motor
W22 NEMA Premium Efficiency 300 HP 4P 447/9T 3Ph 575 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 12438187
Additional information
| Weight | 2587 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Cast Iron |
| Frame | 447/9TS |
| Degree of Protection | IP55 |
| Horsepower | 300 HP |
| Kilowatts | 220 kW |
| Phase | 3 Ph |
| Rated Voltage | 460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 320 A |
| Rated Speed | 3570 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 441 ft.lb |
| Terminal Box | Top |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 81.0 dB(A) |
| Misc |
