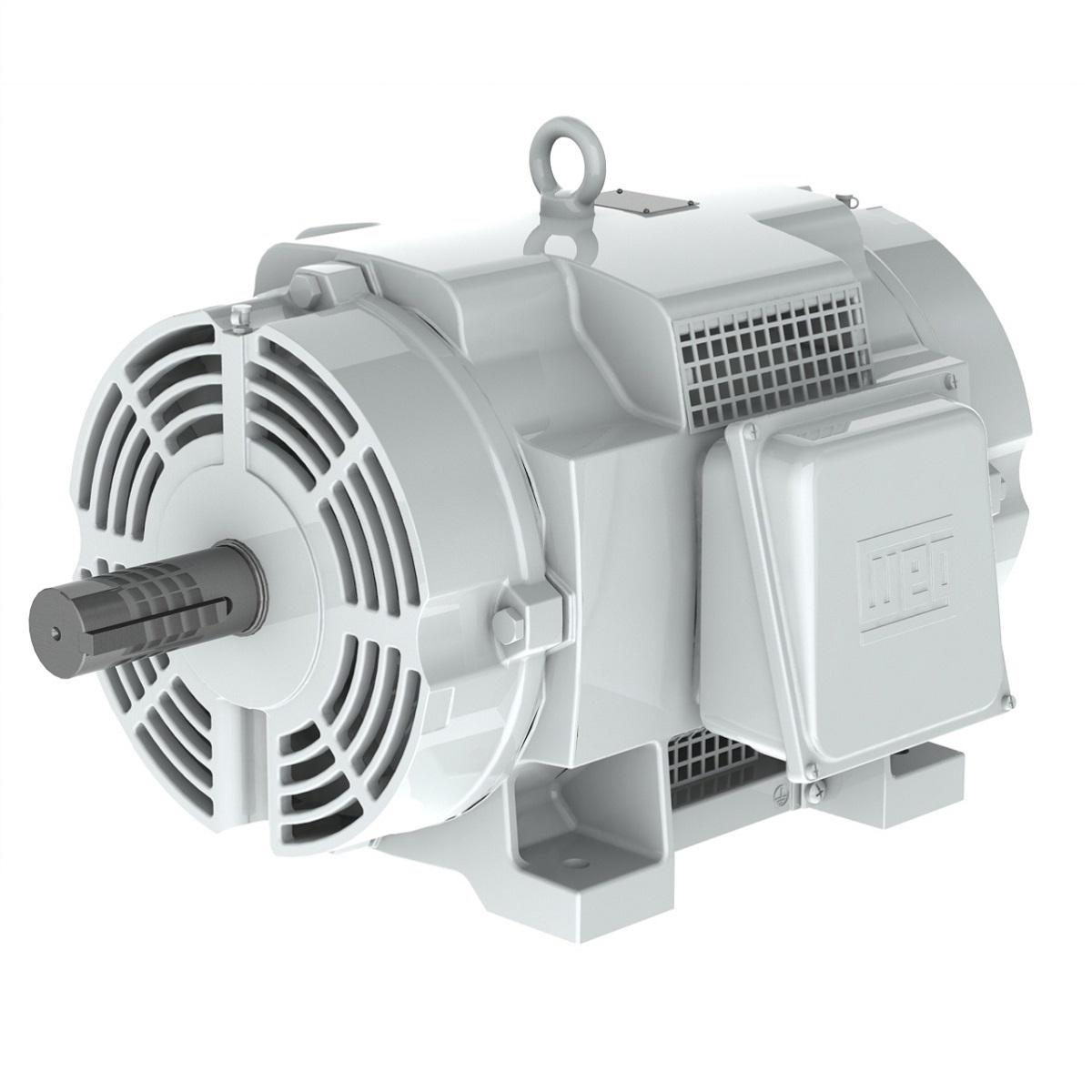

11829385 WEG AC Motor
11829385 – WEG AC Motor
ODP Standard Efficiency 75 HP 6P 444/5T 3Ph 208-230/460 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 11829385
Additional information
| Weight | 1309 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Definite Purpose |
| Frame Material | Cast Iron |
| Frame | 444/5T |
| Degree of Protection | IP23 |
| Horsepower | 75 HP |
| Kilowatts | 55 kW |
| Phase | 3 Ph |
| Rated Voltage | 208-230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 213-193/96.4 A |
| Rated Speed | 1130 RPM |
| Synchronous speed | 1200 RPM |
| Pole | 6:00 PM |
| Service Factor | 1.00 SF |
| Enclosure | IC01 – ODP |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 349 ft.lb |
| Terminal Box | Right position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 69.0 dB(A) |
