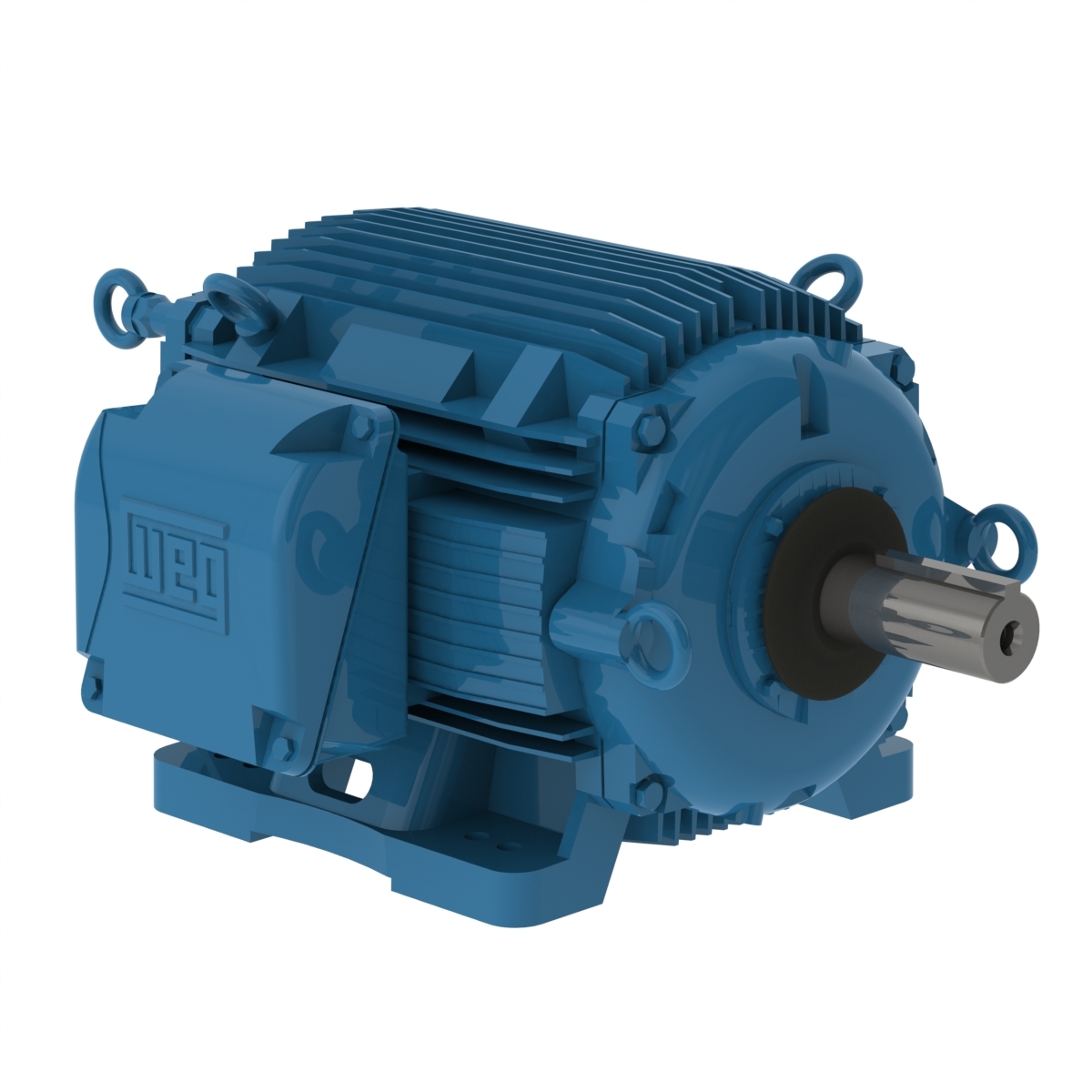

10018AT3ECT405TF1-W2 WEG AC Motor

10018AT3ECT405TF1-W2 WEG AC Motor - Image 2

10018AT3ECT405TF1-W2 WEG AC Motor

10018AT3ECT405TF1-W2 – WEG AC Motor

W22 Cooling Tower NEMA Premium Efficiency 100 HP 4P 404/5T 3Ph 208-230/460//380 V 60//50 Hz IC418 – TEAO – Foot-mounted
Downloads: 10018AT3ECT405TF1-W2

SKU: 10018AT3ECT405TF1-W2 Category: WEG Electric Corp - AC Motors - Single Phase & 3 Phase

Description
Additional information

Description

10018AT3ECT405TF1-W2 – WEG AC Motor. These TEFC motors are built according to NEMA standard, and designed to operate with 100% of humidity in the most corrosive environments. All the line is certified for use with frequency inverter, and can operate in both the horizontal and vertical position. The Cooling Tower was tested according to the IEEE 112, method B, and it has efficiency values certified by UL (CSA C390). They ensure high efficiency levels with high torque, even at low speeds.

Downloads: 10018AT3ECT405TF1-W2

Additional information

Weight	1146 lbs
Manufacturer	WEG
Application	Severe Duty
Frame Material	Cast Iron
Frame	404/5T
Degree of Protection	IP55
Horsepower	100 HP
Kilowatts	75 kW
Phase	3 Ph
Rated Voltage	208-230/460//380 V
Rated Frequency	60//50 Hz
Rated Current	245-226/113 A
Rated Speed	1780 RPM
Synchronous speed	1800 RPM
Pole	4:00 PM
Service Factor	1.25 SF
Enclosure	IC418 – TEAO
Mounting	Foot-mounted
Flange	Without
Rated Torque	295 ft.lb
Terminal Box	Left position
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	68.0 dB(A)
