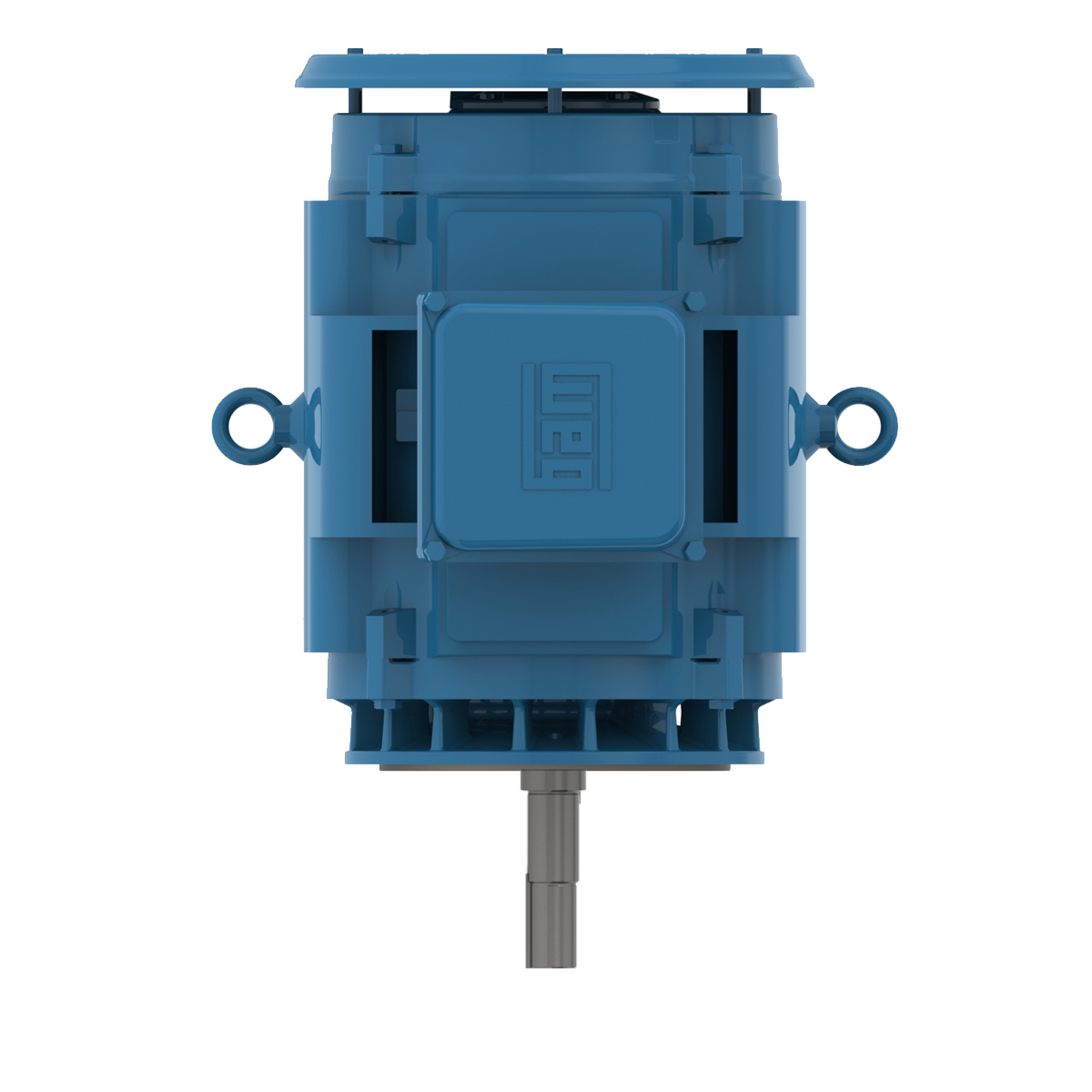

07536OP3H364JMV WEG AC Motor
07536OP3H364JMV – WEG AC Motor
Close Coupled Pump High Efficiency 75 HP 2P 364/5JM 3Ph 575 V 60 Hz IC01 – ODP – Footless
Downloads: 07536OP3H364JMV
Additional information
| Weight | 761 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Close Coupled JM/JP |
| Frame Material | Cast Iron |
| Frame | 364/5JM |
| Degree of Protection | IP23 |
| Horsepower | 75 HP |
| Kilowatts | 55 kW |
| Phase | 3 Ph |
| Rated Voltage | 575 V |
| Rated Frequency | 60 Hz |
| Rated Current | 67.4 A |
| Rated Speed | 3555 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC01 – ODP |
| Mounting | W-6 |
| Flange | C |
| Rated Torque | 111 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 80 dB(A) |
| Misc | Replaced by : 07536OT3H364JMV-W40 – 14837654 |
