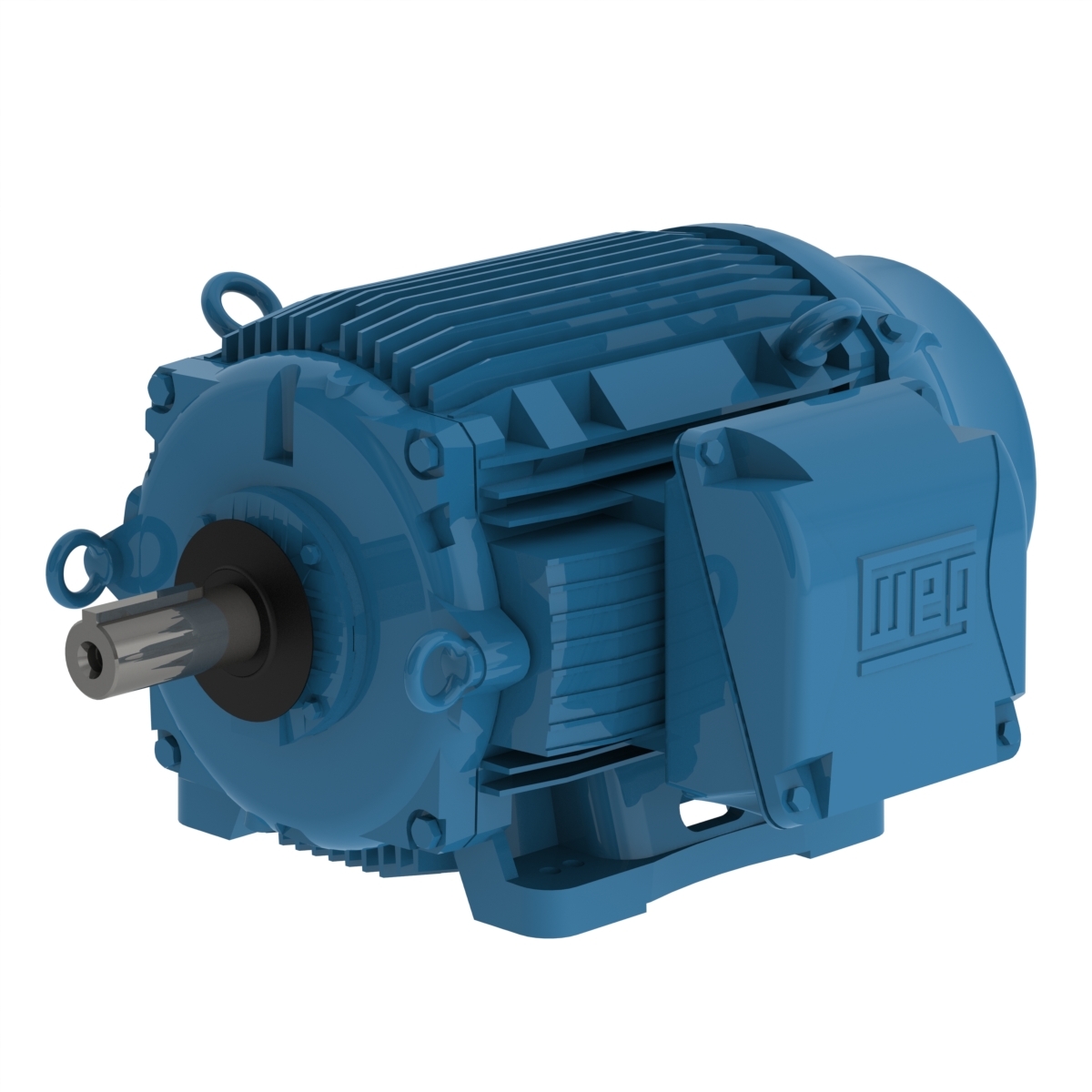

03026EP3QCT364V-W22 WEG AC Motor
03026EP3QCT364V-W22 – WEG AC Motor
W22 Cooling Tower High Efficiency 7.5/30 HP 12/6P 364/5T 3Ph 460 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 03026EP3QCT364V-W22
Additional information
| Weight | 807 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Severe Duty |
| Frame Material | Cast Iron |
| Frame | 364/5T |
| Degree of Protection | IP55 |
| Horsepower | 7.5/30 HP |
| Kilowatts | 5.5 kW |
| Phase | 3 Ph |
| Rated Voltage | 460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 13.4 A |
| Rated Speed | 590 RPM |
| Synchronous speed | 600/1200 RPM |
| Pole | 12/6 P |
| Service Factor | 1.15 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 66.8 ft.lb |
| Terminal Box | Right position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 60.0 dB(A) |
