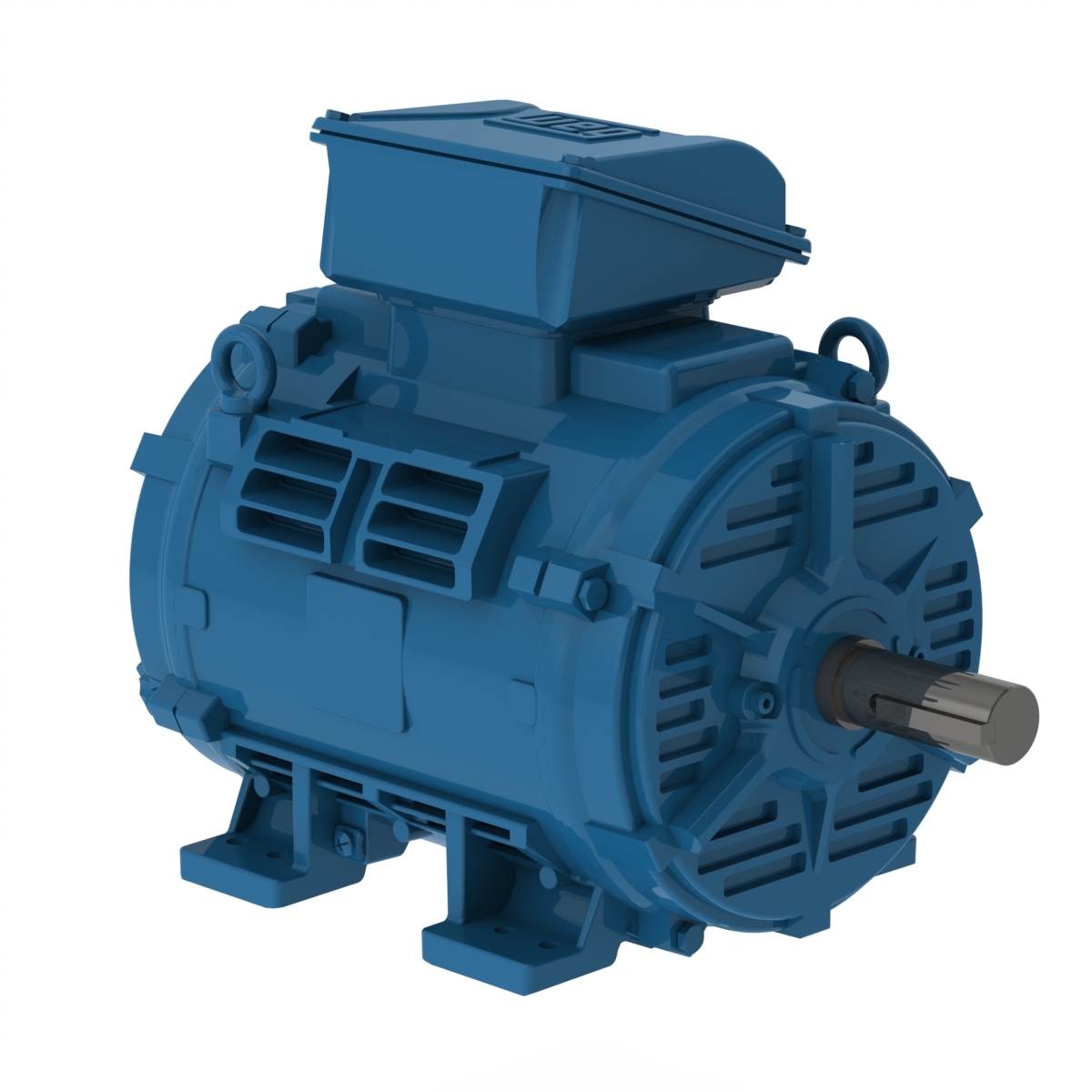

02518OT3E284TF3-W40 WEG AC Motor

02518OT3E284TF3-W40 WEG AC Motor - Image 2

02518OT3E284TF3-W40 WEG AC Motor

02518OT3E284TF3-W40 – WEG AC Motor

W40 NEMA Premium Efficiency 25 HP 4P 284T 3Ph 200/400 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 02518OT3E284TF3-W40

SKU: 02518OT3E284TF3-W40 Category: WEG Electric Corp - AC Motors - Single Phase & 3 Phase

Description
Additional information

Description

02518OT3E284TF3-W40 – WEG AC Motor. W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Downloads: 02518OT3E284TF3-W40

Additional information

Weight	359 lbs
Manufacturer	WEG
Application	General Purpose
Frame Material	Cast Iron
Frame	284/6T
Degree of Protection	IP23
Horsepower	25 HP
Kilowatts	18.5 kW
Phase	3 Ph
Rated Voltage	230/460//380 V
Rated Frequency	60//50 Hz
Rated Current	59.0/29.5 A
Rated Speed	1770 RPM
Synchronous speed	1800 RPM
Pole	4:00 PM
Service Factor	1.25 SF
Enclosure	IC01 – ODP
Mounting	Foot-mounted
Flange	Without
Rated Torque	74.2 ft.lb
Terminal Box	Top
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	64.0 dB(A)
