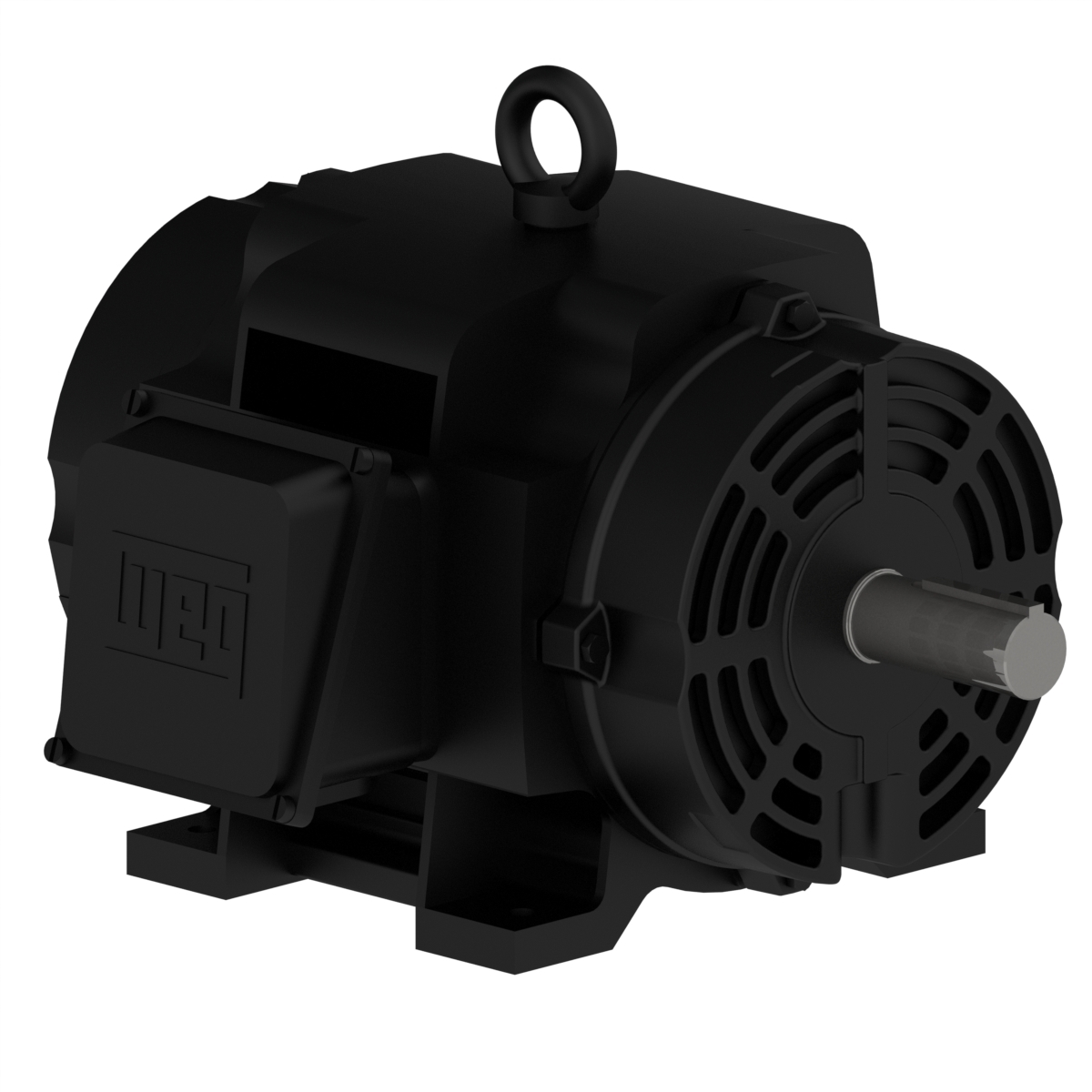

02036OT3ECD254TF2 WEG AC Motor

02036OT3ECD254TF2 WEG AC Motor - Image 2

02036OT3ECD254TF2 WEG AC Motor

02036OT3ECD254TF2 – WEG AC Motor

ODP NEMA Premium Efficiency 20 HP 2P 254T 3Ph 230/460 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 02036OT3ECD254TF2

SKU: 02036OT3ECD254TF2 Category: WEG Electric Corp - AC Motors - 1 Phase & 3 Phase

Description
Additional information

Description

02036OT3ECD254TF2 – WEG AC Motor. W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Downloads: 02036OT3ECD254TF2

Additional information

Weight	209 lbs
Manufacturer	WEG
Application	Definite Purpose
Frame Material	Cast Iron
Frame	254T
Degree of Protection	IP23
Horsepower	20 HP
Kilowatts	15 kW
Phase	3 Ph
Rated Voltage	230/460 V
Rated Frequency	60 Hz
Rated Current	49.2/24.6 A
Rated Speed	3520 RPM
Synchronous speed	3600 RPM
Pole	2:00 PM
Service Factor	1.15 SF
Enclosure	IC01 – ODP
Mounting	Foot-mounted
Flange	Without
Rated Torque	29.8 ft.lb
Terminal Box	Right position
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	66.0 dB(A)
