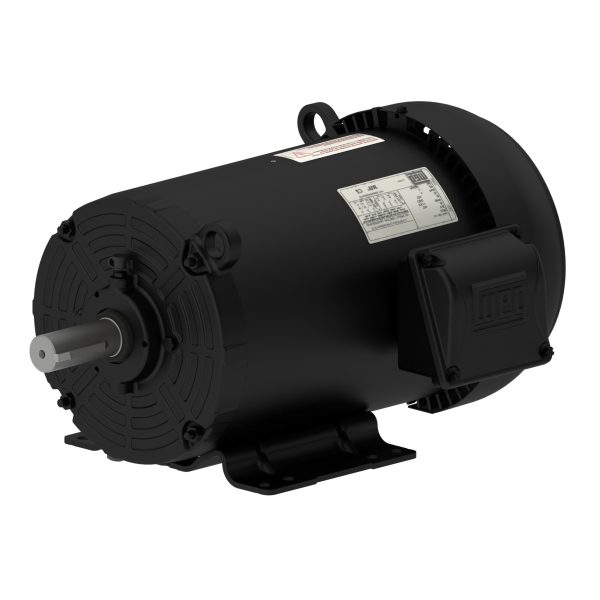

02036ET3V256TC-S WEG AC Motor
02036ET3V256TC-S – WEG AC Motor
Rolled Steel NEMA Premium Efficiency 20 HP 2P 254/6TC 3Ph 230/460//190-220/380-415 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 02036ET3V256TC-S
Additional information
| Weight | 104 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Rolled Steel |
| Frame | 254/6TC |
| Degree of Protection | IP55 |
| Horsepower | 20 HP |
| Kilowatts | 15 kW |
| Phase | 3 Ph |
| Rated Voltage | 200/400 V |
| Rated Frequency | 60 Hz |
| Rated Current | 52.2/26.1 A |
| Rated Speed | 3515 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | C |
| Rated Torque | |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 75.0 dB(A) |
| Misc |
