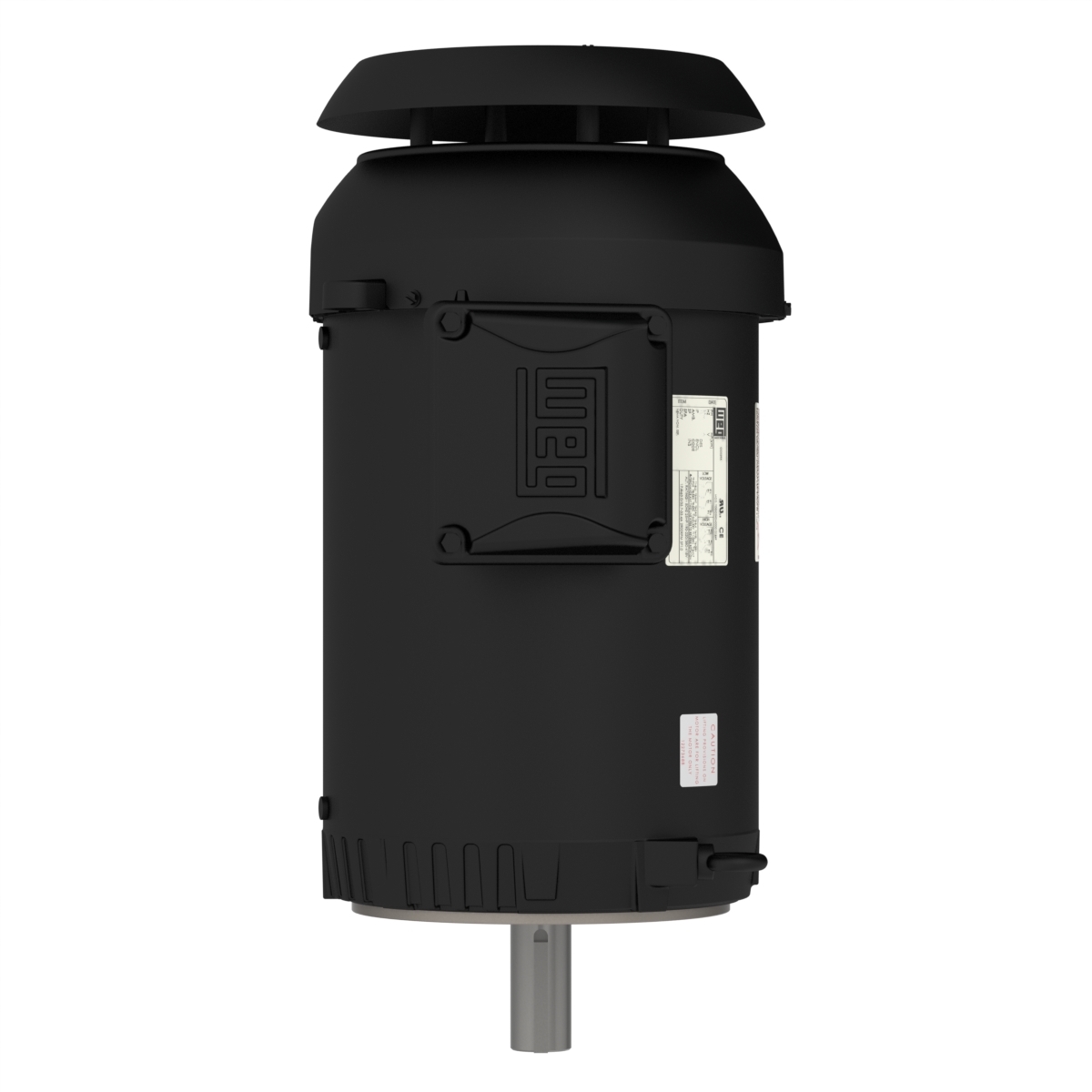

01036ET3ER215TC-S WEG AC Motor
01036ET3ER215TC-S – WEG AC Motor
Rolled Steel NEMA Premium Efficiency 10 HP 4P 213/5T 3Ph 200 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 01036ET3ER215TC-S
Additional information
| Weight | 162 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Rolled Steel |
| Frame | 213/5TC |
| Degree of Protection | IP55 |
| Horsepower | 10 HP |
| Kilowatts | 7.5 kW |
| Phase | 3 Ph |
| Rated Voltage | 230/460//190-220/380-415 V |
| Rated Frequency | 60//50 Hz |
| Rated Current | 23.0/11.5 A |
| Rated Speed | 3530 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Footless |
| Flange | C |
| Rated Torque | 14.9 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 70.0 dB(A) |
| Misc |
