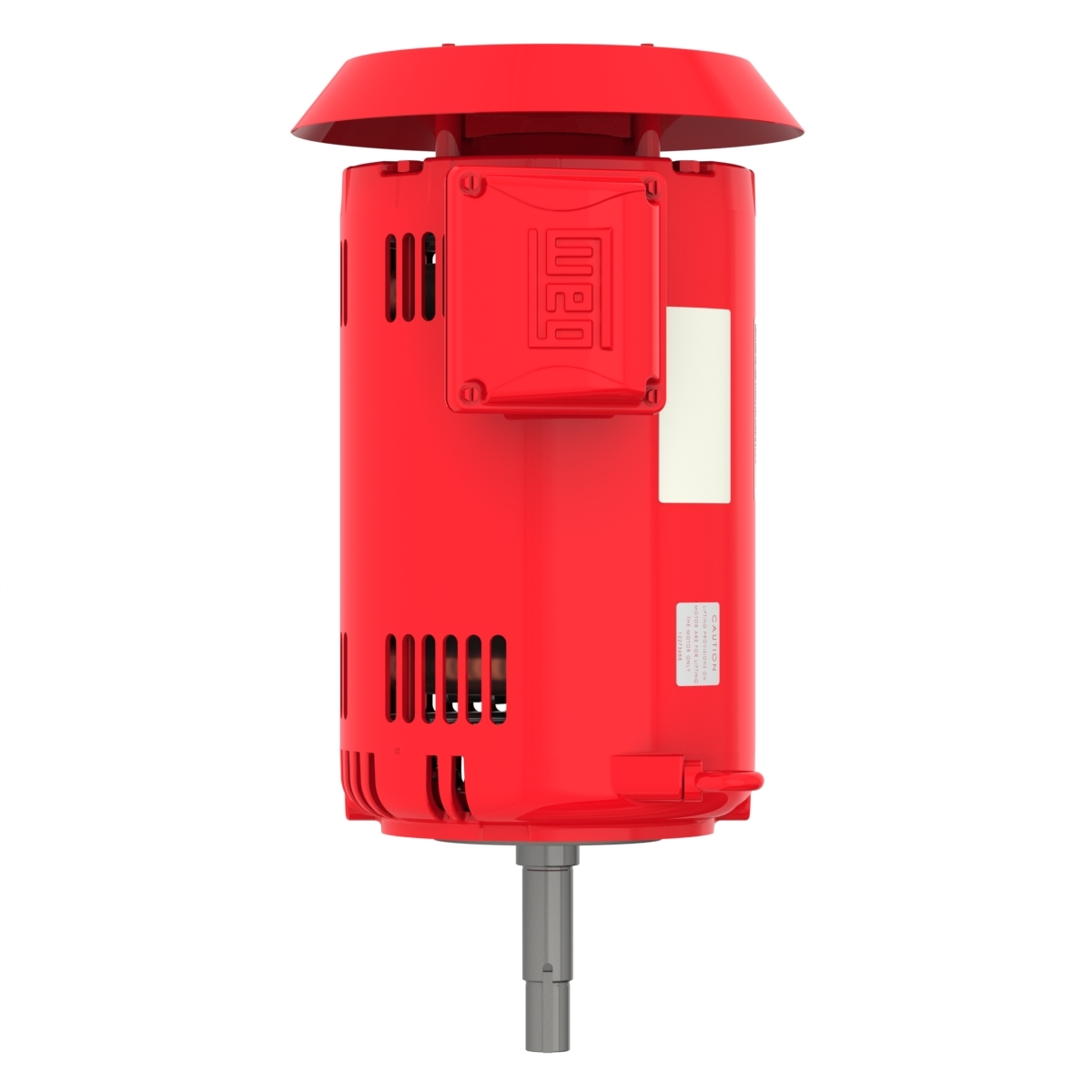

00736OP3VFP184JMV-S WEG AC Motor
00736OP3VFP184JMV-S – WEG AC Motor
Rolled Steel JM Pump High Efficiency 7.5 HP 2P 182/4JM 3Ph 200/400 V 60 Hz IC01 – ODP – Footless
Downloads: 00736OP3VFP184JMV-S
Additional information
| Weight | 70.5 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Fire Pump |
| Frame Material | Rolled Steel |
| Frame | 182/4JM |
| Degree of Protection | |
| Horsepower | 7.5 HP |
| Kilowatts | 5.5 kW |
| Phase | 3 Ph |
| Rated Voltage | 200/400 V |
| Rated Frequency | 60 Hz |
| Rated Current | 20.4/10.2 A |
| Rated Speed | 3500 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC01 – ODP |
| Mounting | Footless |
| Flange | C |
| Rated Torque | 11.3 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 65.0 dB(A) |
| Misc |
