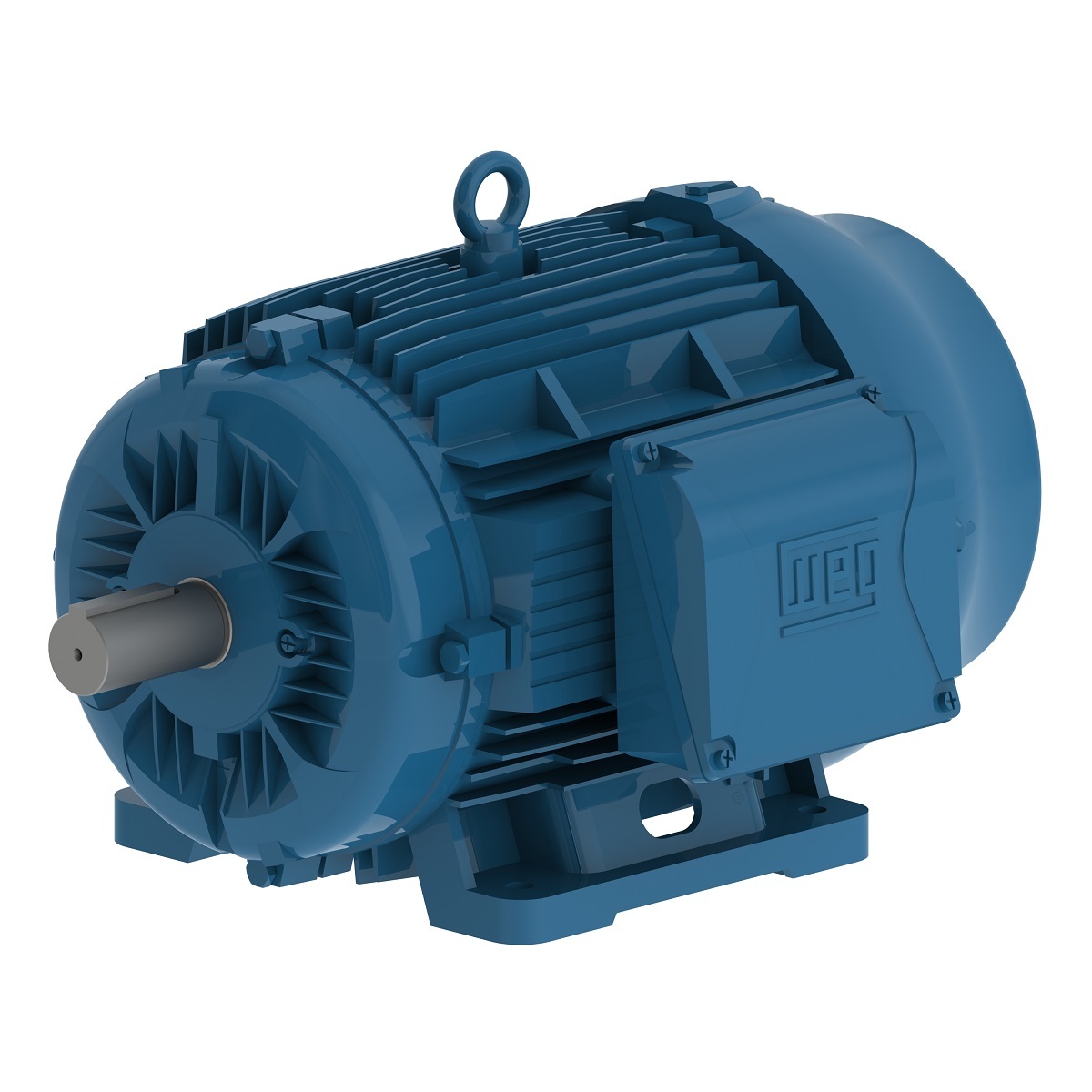

00509EP3Y160M-W22 WEG AC Motor
00509EP3Y160M-W22 – W22 Tru-Metric IE2 7.5 HP 8P 160M 3Ph 460//380-415 V 60 Hz IC411 – TEFC – B3L(E)
Downloads: 00509EP3Y160M-W22
Additional information
| Weight | 280 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose W22 Tru-Metric |
| Frame Material | Cast Iron |
| Frame | 160M |
| Degree of Protection | IP55 |
| Horsepower | 7.5 HP |
| Kilowatts | |
| Phase | 3 Ph |
| Rated Voltage | 460//380-415 V |
| Rated Frequency | 60 Hz |
| Rated Current | |
| Rated Speed | 900 RPM |
| Synchronous speed | 900 RPM |
| Pole | 8:00 PM |
| Service Factor | |
| Enclosure | |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | |
| Terminal Box | Right position |
| Ambient temperature | |
| Altitude | |
| Noise level | |
| Misc | Replaced by : 00509ET3Y160M-W22 – 11616109 |
