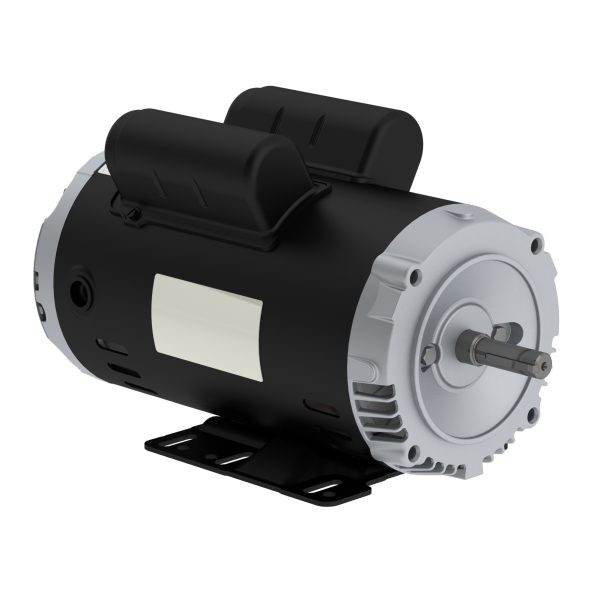

00336OT1B56C-S WEG AC Motor
00336OT1B56C-S – WEG AC Motor
Rolled Steel 3 HP 4P 182/4T 1Ph 208-230 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 00336OT1B56C-S
Additional information
Weight | 47.2 lbs |
---|---|
Manufacturer | WEG |
Application | General Purpose |
Frame Material | Rolled Steel |
Frame | 56HC |
Degree of Protection | |
Horsepower | 3 HP |
Kilowatts | 2.2 kW |
Phase | 1 Ph |
Rated Voltage | 115/208-230 V |
Rated Frequency | 60 Hz |
Rated Current | 24.4/13.5-12.2 A |
Rated Speed | 3500 RPM |
Synchronous speed | 3600 RPM |
Pole | 2:00 PM |
Service Factor | 1.15 (1.00 @ 208V) SF |
Enclosure | IC01 – ODP |
Mounting | Foot-mounted |
Flange | C |
Rated Torque | 4.50 ft.lb |
Terminal Box | Without Terminal Box |
Ambient temperature | -20°C to +40°C |
Altitude | 1000 m.a.s.l. |
Noise level | 58.0 dB(A) |
Misc |
