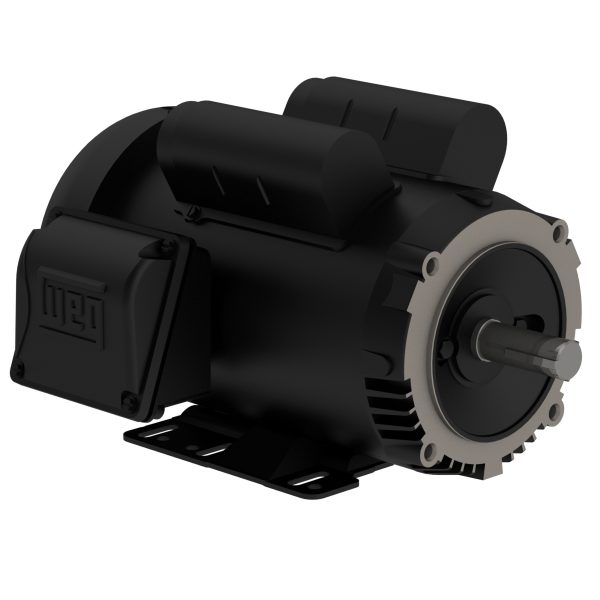

00336ES1E145TC-S WEG AC Motor
00336ES1E145TC-S – WEG AC Motor
Rolled Steel 3 HP 2P 56C 1Ph 115/208-230 V 60 Hz IC01 – ODP – Footless
Downloads: 00336ES1E145TC-S
Additional information
| Weight | 49.4 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Rolled Steel |
| Frame | 143/5TC |
| Degree of Protection | IP55 |
| Horsepower | 3 HP |
| Kilowatts | 2.2 kW |
| Phase | 1 Ph |
| Rated Voltage | 208-230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 14.0-12.7/6.35 A |
| Rated Speed | 3490 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 (1.00 @ 208V) SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | C |
| Rated Torque | 4.51 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 68.0 dB(A) |
| Misc |
