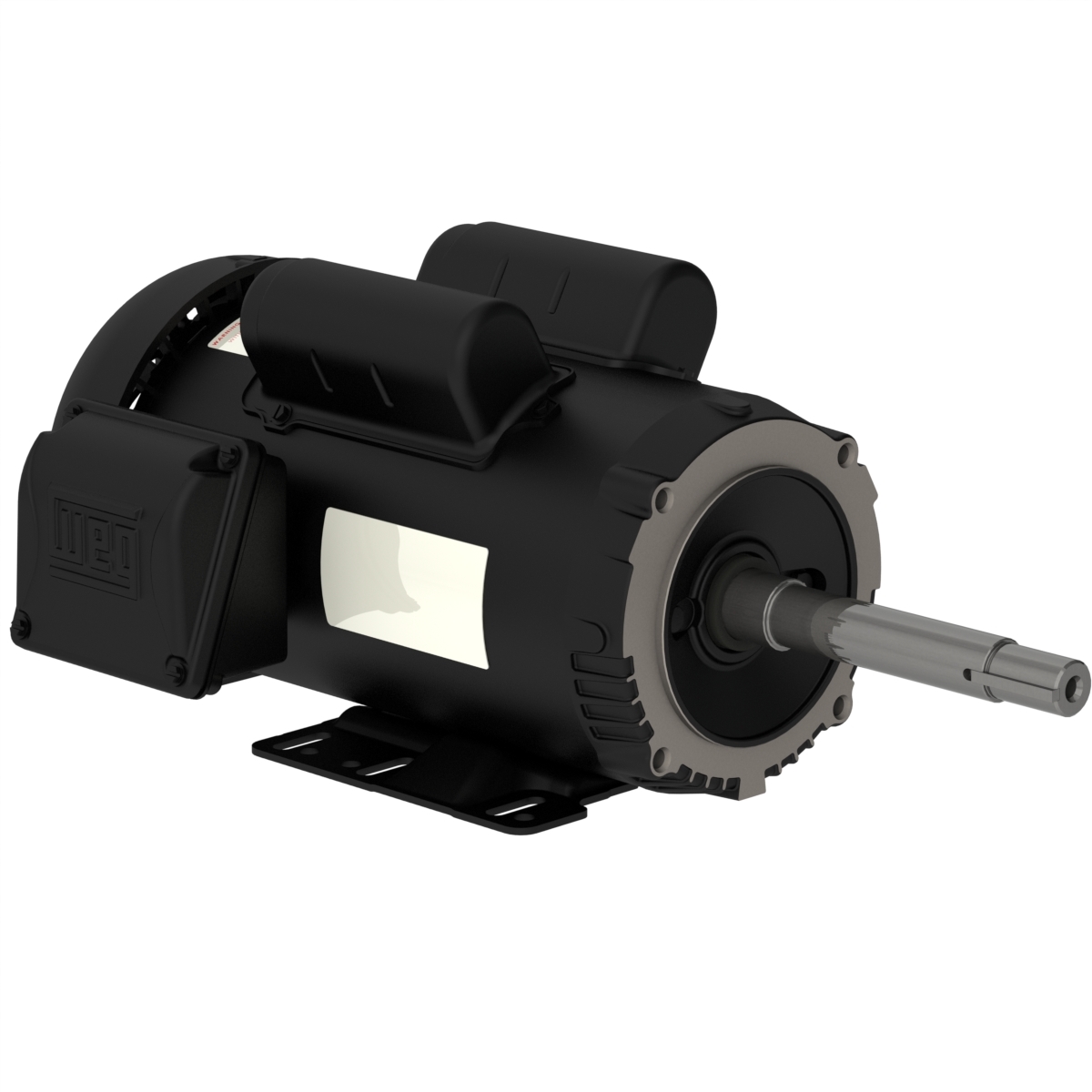

00336ES1B145JP WEG AC Motor
00336ES1B145JP – WEG AC Motor
Rolled Steel JP Pump 3 HP 2P 143/5JP 1Ph 115/208-230 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 00336ES1B145JP
Additional information
| Weight | 52.9 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Close Coupled JM/JP |
| Frame Material | Rolled Steel |
| Frame | 143/5JP |
| Degree of Protection | IP55 |
| Horsepower | 3 HP |
| Kilowatts | 2.2 kW |
| Phase | 1 Ph |
| Rated Voltage | 115/208-230 V |
| Rated Frequency | 60 Hz |
| Rated Current | 26.0/14.0-13.0 A |
| Rated Speed | 3480 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Flange | C |
| Rated Torque | 4.53 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 60 dB(A) |
| Misc | Replaced by : 00336ES1B145JP-W22 – 14180701 |
