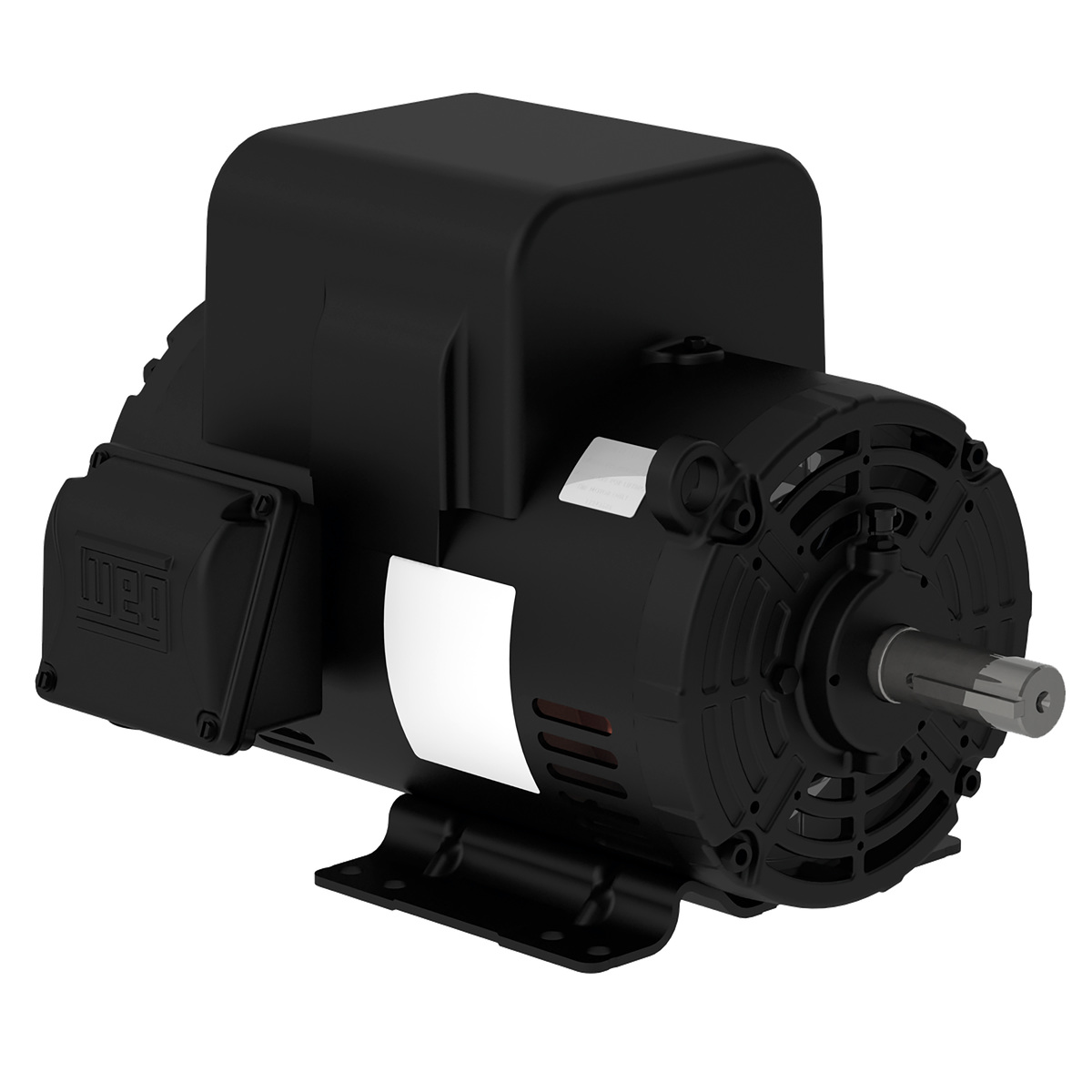

00318OS1CCDOL184T-S WEG AC Motor

00318OS1CCDOL184T-S WEG AC Motor - Image 2

00318OS1CCDOL184T-S WEG AC Motor

00318OS1CCDOL184T-S – WEG AC Motor

Rolled Steel 5 HP 2P 182/4T 1Ph 230 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 00318OS1CCDOL184T-S

SKU: 00318OS1CCDOL184T-S Category: WEG Electric Corp - AC Motors - Single Phase & 3 Phase

Description
Additional information

Description

00318OS1CCDOL184T-S – WEG AC Motor. The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for applications where dirt and humidity are minimal.

Downloads: 00318OS1CCDOL184T-S

Additional information

Weight	30.2 lbs
Manufacturer	WEG
Application	General Purpose
Frame Material	Rolled Steel
Frame	182/4T
Degree of Protection
Horsepower	3 HP
Kilowatts	2.2 kW
Phase	1 Ph
Rated Voltage	208-230 V
Rated Frequency	60 Hz
Rated Current	13.7-12.8 A
Rated Speed	1765 RPM
Synchronous speed	1800 RPM
Pole	4:00 PM
Service Factor
Enclosure	IC01 – ODP
Mounting	Foot-mounted
Flange	Without
Rated Torque
Terminal Box	Left position
Ambient temperature
Altitude
Noise level
