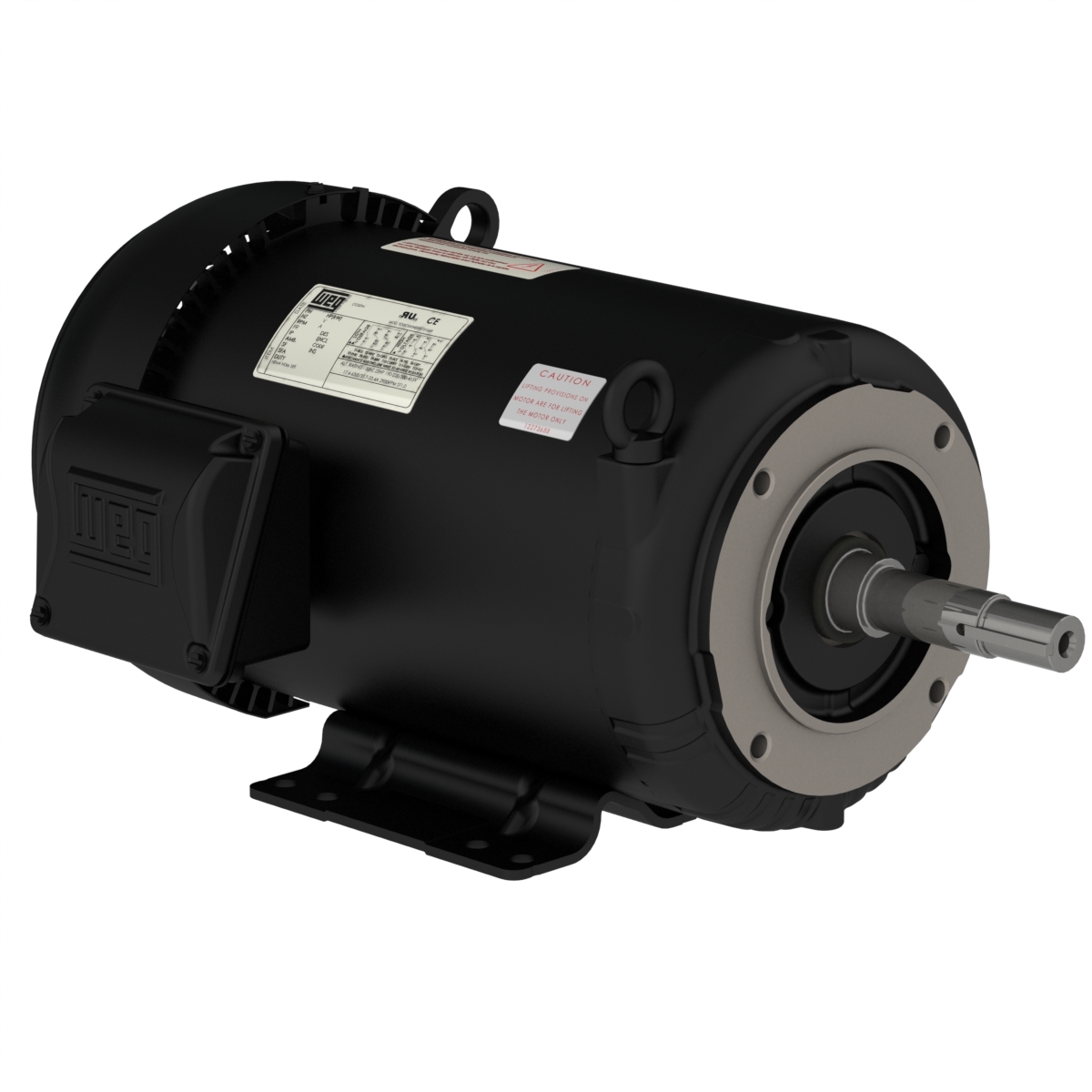

00318EP3H182JM-S WEG AC Motor
00318EP3H182JM-S – WEG AC Motor
Rolled Steel JM Pump High Efficiency 3 HP 4P 182/4JM 3Ph 575 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 00318EP3H182JM-S
Additional information
| Weight | 72.1 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Close Coupled JM/JP |
| Frame Material | Rolled Steel |
| Frame | 182/4JM |
| Degree of Protection | IP55 |
| Horsepower | 3 HP |
| Kilowatts | 2.2 kW |
| Phase | 3 Ph |
| Rated Voltage | 575 V |
| Rated Frequency | 60 Hz |
| Rated Current | 3.24 A |
| Rated Speed | 1760 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Flange | C |
| Rated Torque | 8.95 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 56 dB(A) |
| Misc | Replaced by : 00318ET3H182JM-S – 13393204 |
