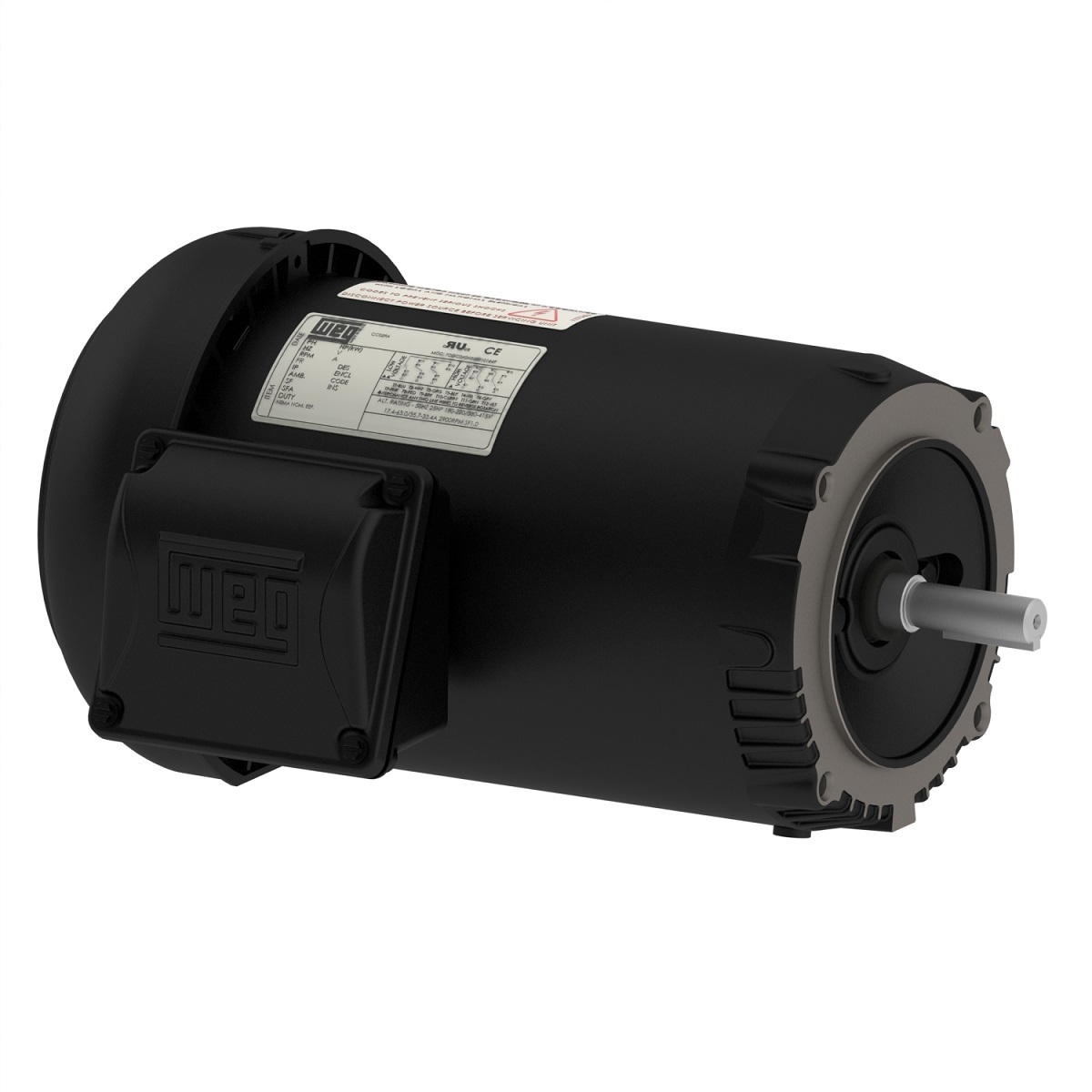

00158ET3ESB145TCZ1-S WEG AC Motor
00158ET3ESB145TCZ1-S – WEG AC Motor
Rolled Steel NEMA Premium Efficiency 1.5 HP 6P 182/4T 3Ph 230/460//190-220/380-415 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 00158ET3ESB145TCZ1-S
Additional information
| Weight | 38.6 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Rolled Steel |
| Frame | 143/5TCZ |
| Degree of Protection | IP55 |
| Horsepower | 1.5 HP |
| Kilowatts | 1.1 kW |
| Phase | 3 Ph |
| Rated Voltage | 208-230/460//190-220/380-415 V |
| Rated Frequency | 60//50 Hz |
| Rated Current | 4.82/2.41 A |
| Rated Speed | 1420 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Footless |
| Flange | C |
| Rated Torque | 5.55 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +65°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 49.0 dB(A) |
