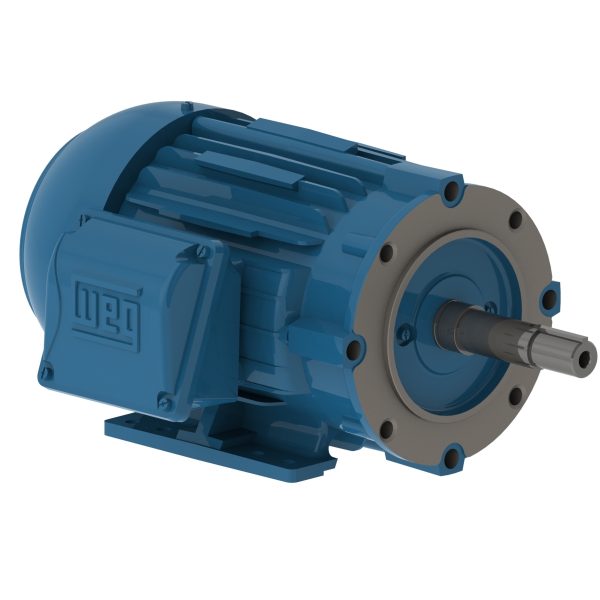

00118EP3E143JM-W22 – WEG AC Motor

W22 Close Coupled Pump JM High Efficiency 1 HP 4P 143/5JM 3Ph 208-230/460//380 V 60//50 Hz IC411 – TEFC – Foot-mounted
Downloads: 00118EP3E143JM-W22

SKU: 00118EP3E143JM-W22 Category: WEG Electric Corp - AC Motors - Previous Generation

Description
Additional information

Description

00118EP3E143JM-W22 – WEG AC Motor. The W22 Close Coupled motor line was specifically developed for direct drive pumps, both in the JM and JP version. The W22 JM motors have short axis, which limits the vibration and radial movement, extending the seal service life. On the other hand, the W22 JP motors have longer axis. Direct drive with perfect alignment and extended service life.

Downloads: 00118EP3E143JM-W22

Additional information

Weight	51.4 lbs
Manufacturer	WEG
Application	Close Coupled JM/JP
Frame Material	Cast Iron
Frame	143/5JM
Degree of Protection	IP55
Horsepower	1 HP
Kilowatts	0.75 kW
Phase	3 Ph
Rated Voltage	230/460 V
Rated Frequency	60 Hz
Rated Current	3.40/1.70 A
Rated Speed	1770 RPM
Synchronous speed	1800 RPM
Pole	4:00 PM
Service Factor	1.25 SF
Enclosure	IC411 – TEFC
Mounting	F-1
Flange	C
Rated Torque	2.97 ft.lb
Terminal Box	Left position
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	51 dB(A)
Misc	Replaced by : 00118ET3E143JM-W22 – 12598383
