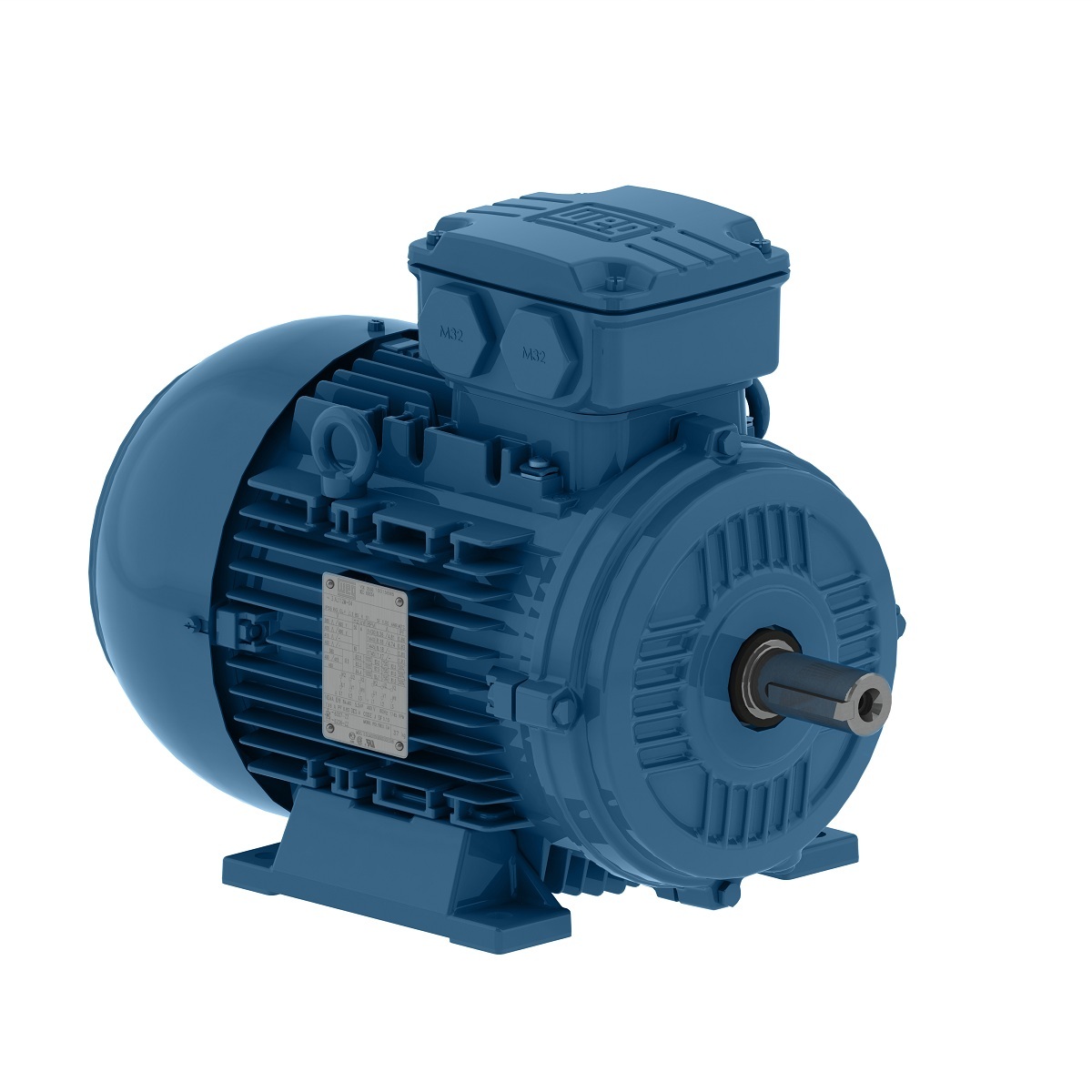

00112ET3EAL100L-W22 WEG AC Motor

00112ET3EAL100L-W22 WEG AC Motor - Image 2

00112ET3EAL100L-W22 WEG AC Motor

00112ET3EAL100L-W22 – WEG AC Motor

Multimounting IE3 1.1 kW 6P L100L 3Ph 190/380//230/460 V 50 Hz IC411 – TEFC – B3T
Downloads: 00112ET3EAL100L-W22

SKU: 00112ET3EAL100L-W22 Category: WEG Electric Corp - AC Motors - 1 Phase & 3 Phase

Description
Additional information

Description

00112ET3EAL100L-W22 – WEG AC Motor. With aluminum frame and removable feet, this motor is able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, the W21 Multimounting is totally interchangeable with the cast iron motors.

Downloads: 00112ET3EAL100L-W22

Additional information

Weight	70.6 lbs
Manufacturer	WEG
Application	General Purpose Multimounting
Frame Material	Aluminum
Frame	L100L
Degree of Protection	IP55
Horsepower	1.5 HP
Kilowatts
Phase	3 Ph
Rated Voltage	190/380//230/460 V
Rated Frequency	50 Hz
Rated Current	5.68/2.84 A
Rated Speed	950 RPM
Synchronous speed	1000 RPM
Pole	6:00 PM
Service Factor	1.00 SF
Enclosure	IC411 – TEFC
Mounting	Foot-mounted
Flange	Without
Rated Torque	8.16 ft.lb
Terminal Box	Top
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	44.0 dB(A)
