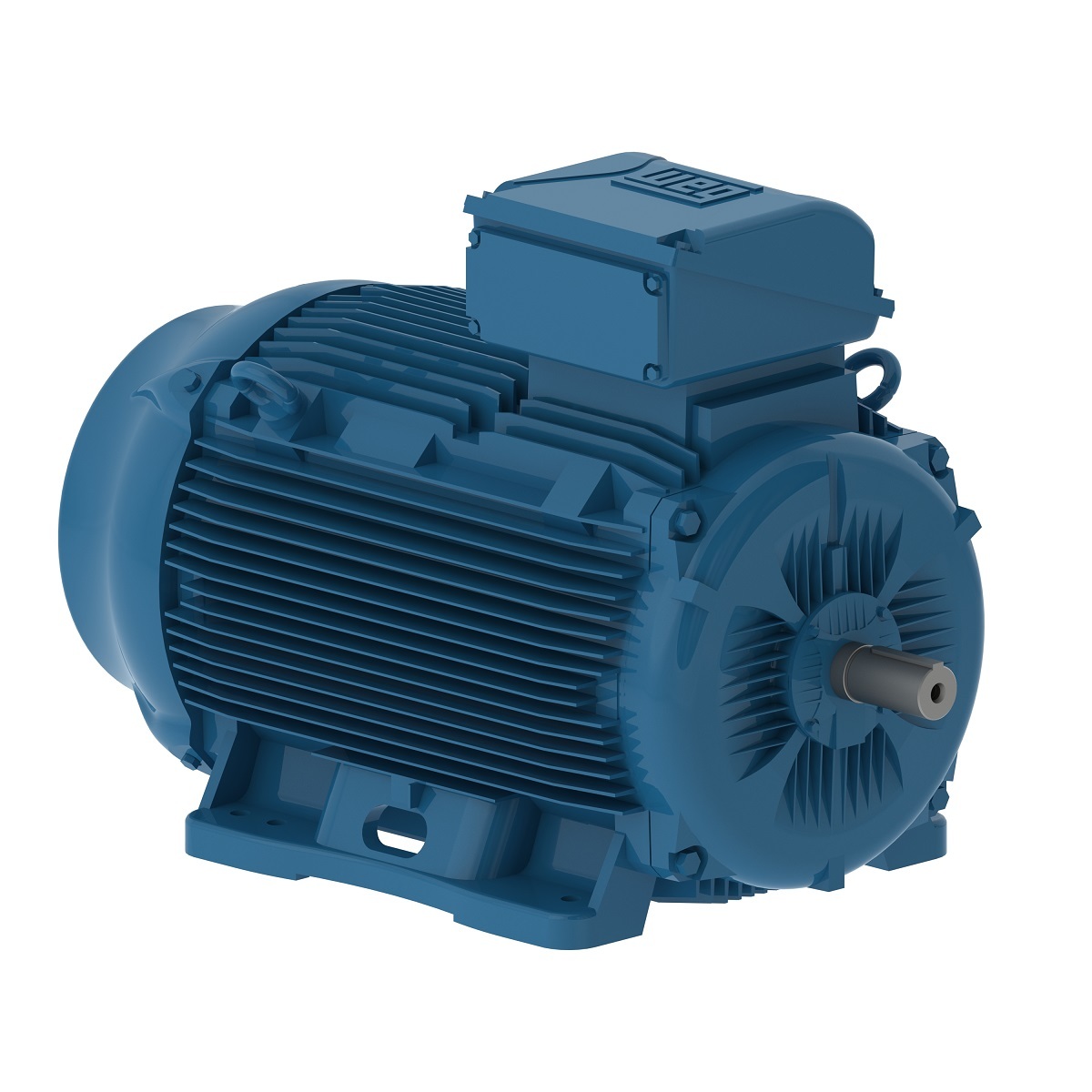

E11018EP3Y315SMF3-W2 WEG AC Motor
E11018EP3Y315SMF3-W2 – WEG AC Motor
W22 IE2 110 kW 4P 315S/M 3Ph 380-400-415/660-690//460 V 50 Hz IC411 – TEFC – B3T
Downloads: E11018EP3Y315SMF3-W2
Additional information
| Weight | 2045 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose W22 |
| Frame Material | Cast Iron |
| Frame | 315S/M |
| Degree of Protection | IP55 |
| Horsepower | 150 HP |
| Kilowatts | |
| Phase | 3 Ph |
| Rated Voltage | 380-400-415/660-690//460 V |
| Rated Frequency | 50 Hz |
| Rated Current | 205/118 A |
| Rated Speed | 1487 RPM |
| Synchronous speed | 1500 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.00 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 521 ft.lb |
| Terminal Box | Top |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 71.0 dB(A) |
| Misc |
